GW-1325 Ballscrew servo motor cnc laser cutting machine

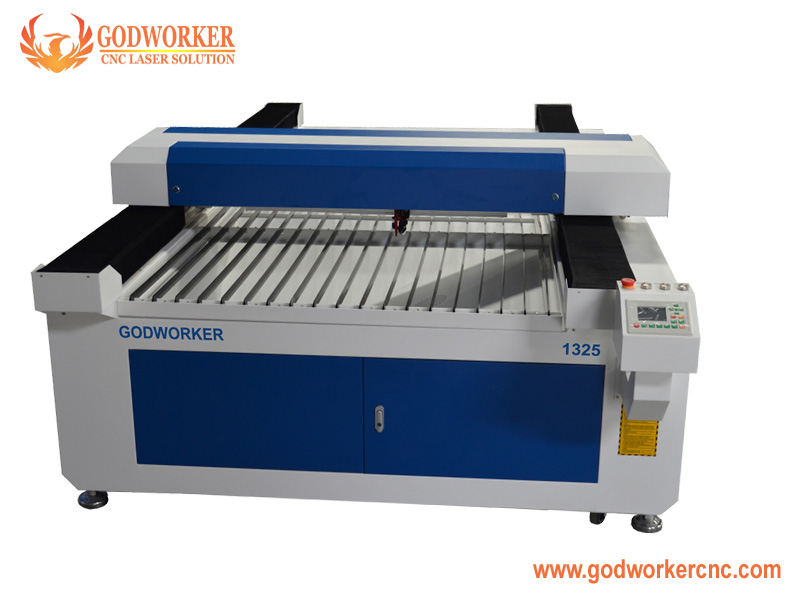

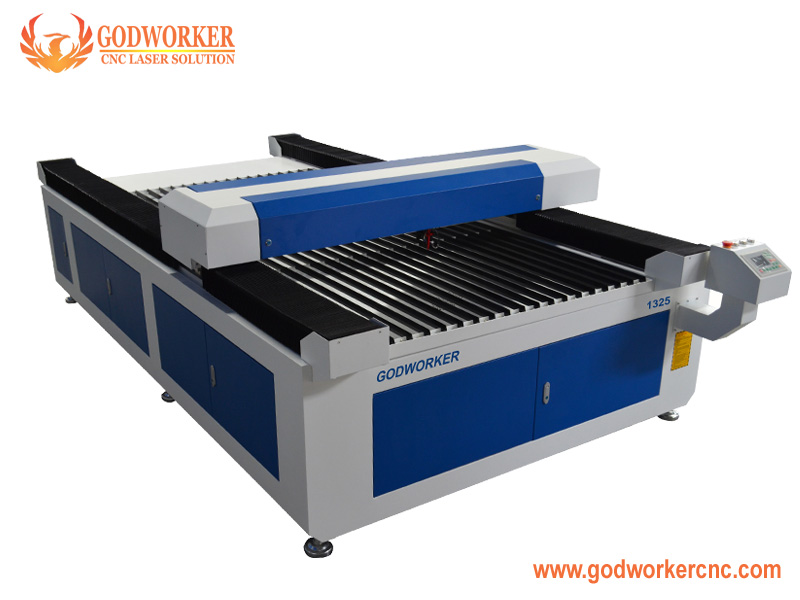

GW-1325 Ballscrew Servo Motor CNC Laser Cutting Machine
1.High precision: Adopt 400W Japan Panasonic Servo Motor and China Taiwan PMI Linear Rail transmission greatly improve the response speed & cutting precision of equipment,extend the time of using.
2.Constant light system :The machine uses the constant light,achieving high precision cutting of the whole area.
3.High precision and stability: with precision China PMI Linear Rail & TBI Ballscrew transmission mechanism and optimized the Ruida RDC 6445G system controller, it can meet the precision parts processing ,stable dynamic performance, also can work for long hours.
4.The cutting section with good quality: mechanical follow-up cutting head system: cutting head always follow the material to keep the cutting point location unchanged,which insures smooth cutting section without processing again .It can adapt to flat or curved surface sheet cutting.
5.Adopt RECI / Yongli sealed CO2 laser tube, main consumable items are electric energy, water-cooling, auxiliary gas and laser light.
6.Stronger structure 3mm steel ,easy operation ,stable laser device and low maintenance cost.
7.Adopt imported USA laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable. Optical less losses in the transmission process to avoid the problems of large attenuation of laser cutting power.
Applicable Industries: Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts & crafts, electronic & electric appliances, garment industry fabric leather cut, etc.
Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.
Technical Parameters



Working  Area


Tube type

10.6um CO2 sealed glass tube (RECI / Yongli)

Laser Power

80W / 100W / 130W / 150W / 180W / 220W / 300W

Cooling mode

Water chiller CW3000 / CW5000 / CW5200 / CW6000

Cutting thickness


Engraving Speed


Cutting Speed


Reposition Accuracy


Minimum Character Size

English:1mm ; Arabic numbers:1mm


1,000--10,000 dpi

File output mode

2.0 USB interface

Machine Power


Support Format and Software


Auto CAD, Coreldraw, Photoshop, RDworkV8

Working Environment Temperature


Drive system

400W Pansonic servo motors + drivers (X,Y axis)

Control system

Ruida 6445G control system

Transmission way

PMI Linear Rail + TBI Ballscrew

Working table

Aluminum knife working table

Exhaust smoke system

550W exhaust fan

Working Voltage

220V, 50Hz/60Hz

Electronic parts

France Schneider

N.W. / G.W.

900KG / 1100KG

Warranty time

2 years for machine, 10 - 18months for tube


Plywood case with steel tube

Packing size


Delivery time

8--10 working days after received the deposit

Machine Details
Adopt RECI / Yongli CO2 glass laser tube (80W--300W for option).
Laser head with red dot and auto focus:
Ruida 6445G control panel + swtich buttons:
S&A water chiller:
Transmission system: TBI Ballscrew + PMI Linear Rail + Panasonic Servo Motors.
Control cabinet: Schneider electric parts + Servo drivers + Power supply + Voltage filter + RD controller....
Tools box + User Manual + Goggle + Spare parts:
Optional Configurations

Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machine can both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes. It supports Windows 7 / 8 / 10 and other operating systems.
Q: What kind of graphic format does it support?
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 60W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes. Our tools box has goggle when somebody operate machine, pls wear the goggle.
Q: How can I pay my order?
A: We accept T/T, Western Union ,Money Gram paying methods.
Q. When I got GODWORKER Laser cutting machine, I don't know how to use it. What should I do?
A: 1. We will send you the video and manual with the laser machine.
2. If you still have some doubts, please contact us via Telephone / WeChat / Email / WhatsApp, will answer you within 8 hours.
3. Engineer can remote control your PC guide you how to operate it.
4. If necessary, we will dispatch the technician for in-house service (Installation & Training), but you need pay for some fee, like air tickets, hotel and meal, daily salary.
5. If you can come to China, we will offer you free training until you can use machine freely.
Q: What's the warranty on the laser cutting machine?
A: 1. Machine has warranty for 2 years, starting from the delivery date (subject to date on nameplate).
2. Glass laser tube warranty for 10--18 months.
3. No warranty in case of damage due to improper handling.

Any further questions, please do not hesitate to contact us, we will service to you at 7×24 hours.
