Continuous fiber laser cleaning machine 1kw 1.5kw 2kw

ꄴPrevious： Pulse Fiber Laser Cleaning Machine 200W 500W for rust removal

ꄲNext： Handheld fiber laser welding machine 1000W 1500W 2000W Raycus / JPT

Fiber Laser rust removal (cleaning )Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.

Application:
Metalsurface rust removal, Surfacepaint removal and paint treatment, Surfaceoil, stains, dirt cleaning, Surfacecoating, clear coating, Weldingsurface / spray surface pretreatment, Stonesurface dust and attachment removal, Rubbermold residue cleaning.
A. Metal surface cleaning
B. Removal paint of metal surface
C. stains cleaning on the surface
D. Surface coating cleaning
E. Pre-treatment of welding surface cleaning
F. Stone surface cleaning
G. Rubber mold residue cleaning

Advantages
1.Precise cleaning, can achieve precise location, the exact size of the selective cleaning.
2.Laser-cleaning-machine without any chemical cleaning fluid, no supplies, safety and environmental protection.
3.Simple operation, power can be hand-held or with the robot to achieve automated cleaning.
4.Cleaning efficiency is very high, save time.
5.Laser cleaning system is stable, almost no maintenance.

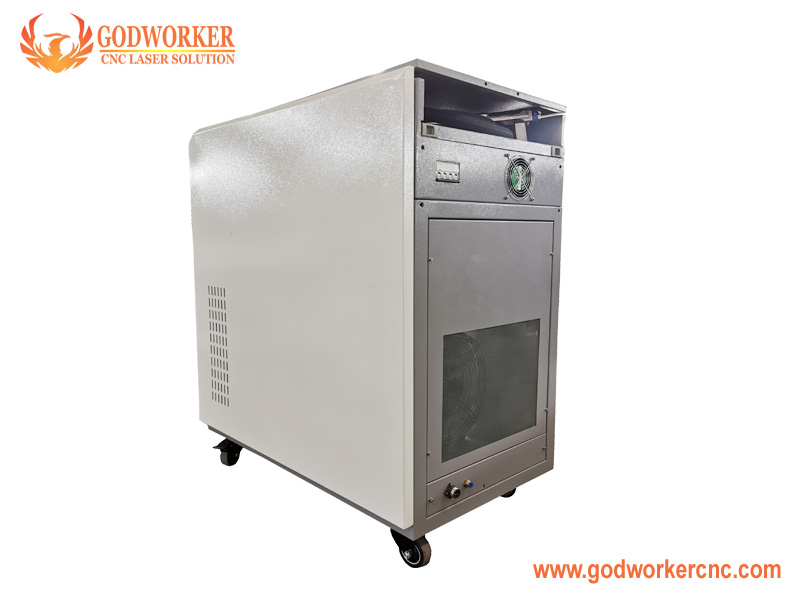

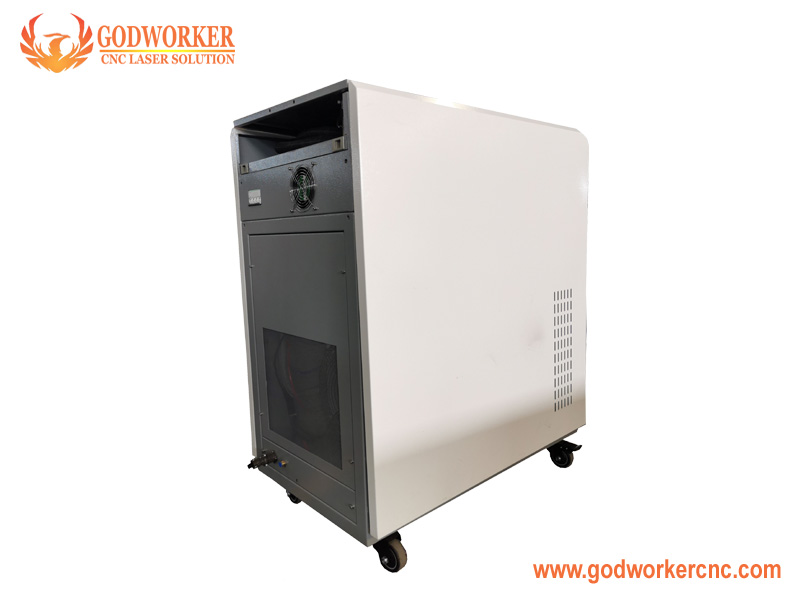

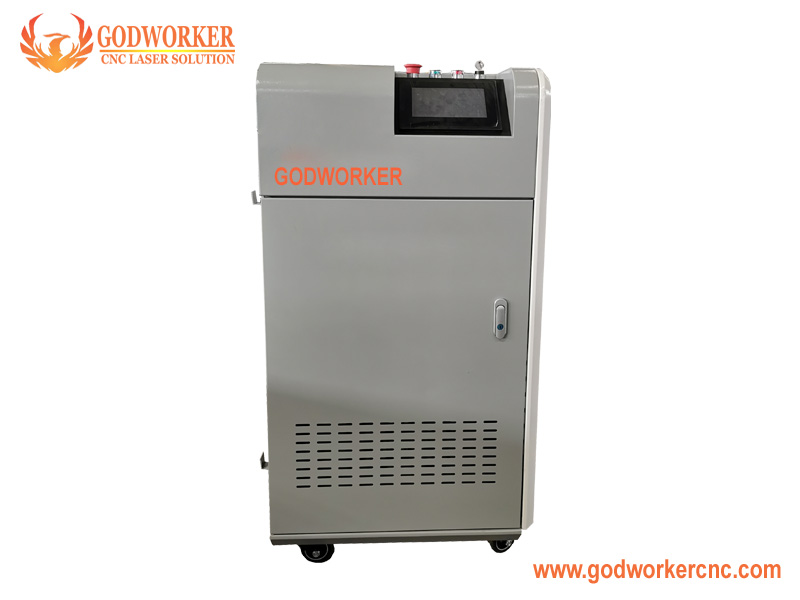

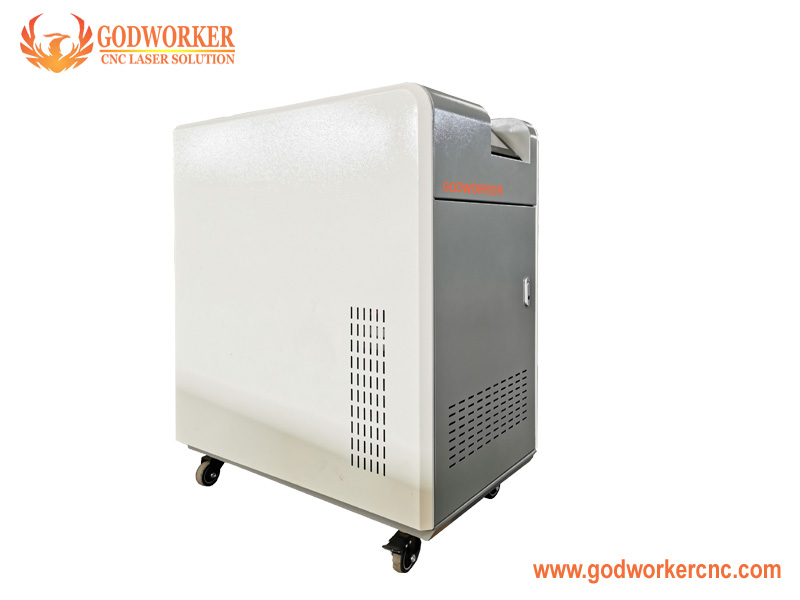

Model	GW-1000FC
Laser power watts	JPT 1000W Continuous fiber laser (Option: 1500W / 2000W)
Power adjustment rate	10-100%
Laser wavelength	1080nm
Scanning width	20--100mm
Fiber cable length	7--10m
Frequency	20--50Khz
Cleaning head weight	0.9kg
Working method	Manual / Auto
Cleaning efficiency	90--110m3/h
Cooling method	water cooling
Move method	Hand/push (can be customized according to actual conditions)
Voltage	Single phase 220V, 50/60Hz
Total watts	4000W
Stall environment	Level, No vibration, no impact
Working Temperature	0℃～40℃
Working Humidity	≤80%
Packing size	11007001400mm
N.W / G.W	200KG / 260KG

Application
Rust Removal	Oxide Removal	Molding Cleaning	Surface Preparation
Coatings Removal	Weld Pre-treatment	Gluing Pre-treatment	Removal of Oil and Grease
Paint Removal	Surface Cleaning	Stain Removal	Surface Roughening
Tool Cleaning	Historic Restoration	Selective Paint Removal	Precise Cleaning

Fiber Laser Source: 1000W laser generator with water cooling, we have different laser generator brand and different laser power can be chosen ( Raycus / JPT: 1000W / 1500W / 2000W).

Relfar laser cleaning head: with safety click more safety for operator, cleaning width can adjust 20--100mm.

Control System: supports Chinese and English. The machine has complete working buttons (Schneider), which makes the operation more convenient and safer.

Industrial Chiller: laser generator is cooled by water circulation, and the temperature of the laser generator is accurately controlled, so that the laser generator can maintain normal operation for a long time.

Machine accessories: Protect mirrors + clean cotton swab + Ruller + Goggle + Spanner.

Package:

Q: What is the speed of the laser cleaning machine?
A. Different laser types determine the cleaning speed of the cleaning machine, and the cleaning speed is within the range of >15m²/h
Q: Is it possible to clean the mold?
A. Yes, You can give us your mailbox, and we will send the video of the laser cleaning machine cleaning the mold to your mailbox.
Q: How about the effect of paint and rust removal ?
A. Yes, very nice removal the painting, (recommend Pulse fiber laser which won't damage objects surface).
Q: Is there any damage to the cleaning material?
A. Depends on what type you need, the pulse type has a finer cleaning effect, and the continuous type has a faster cleaning speed, Relative damage of material, pulse type is less than continuous type.
Q: What's the language interface can choose ?
A: Support Chinese and English.
Q: What's the lassification of cleaning objects ?
A. oxide layer, rusty scale, Paint, coating, Dirt, carbon layer, etc.
Q:How to operate the machine ?
A: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
Q:Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB & CIF are available.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes. Our tools box has goggle when somebody operate machine, pls wear the goggle.
Q: How can I pay my order?
A: We accept T/T, Cash, Alibaba paying methods.
Q: What's the warranty on the laser cleaning machine?
A: 1. Machine has warranty for 1 year, starting from the delivery date (subject to date on nameplate).
2. Fiber laser source warranty for 2 years.
3. Relfar cleaning gun and controller warranty 1 year.
4. No warranty in case of damage due to improper handling, and consume parts ( like protect mirrors).
