1325 auto focus laser cutting engraving machine

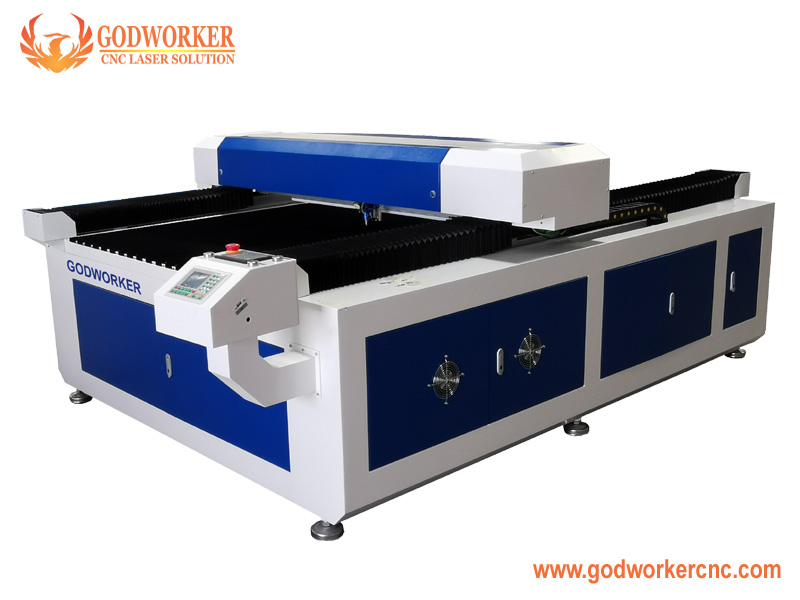

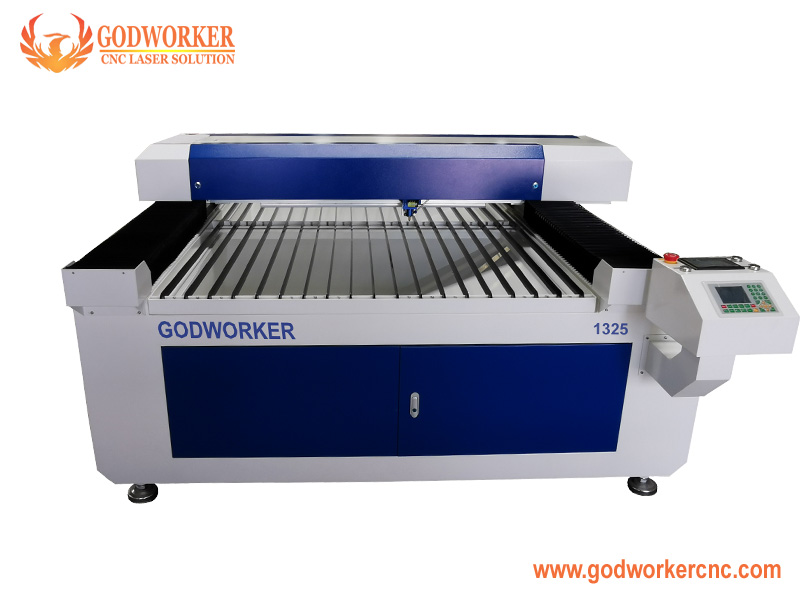

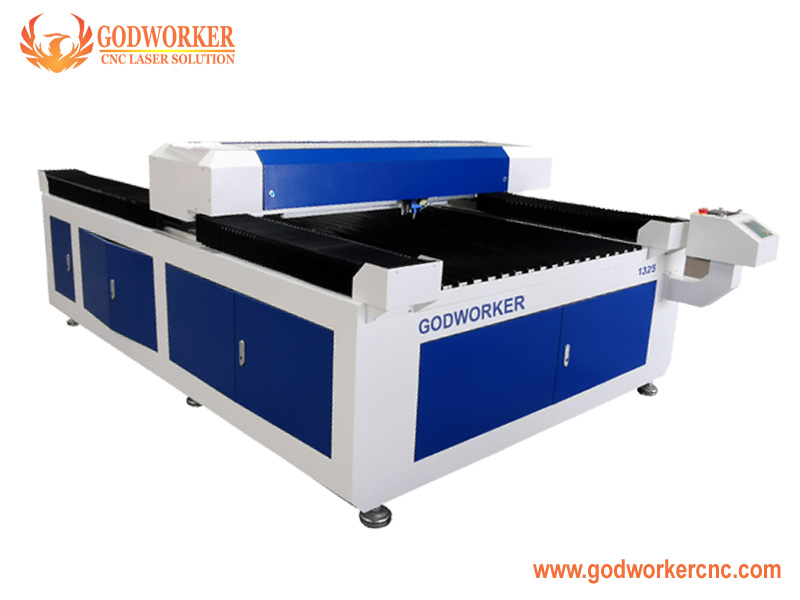

1325 Nonmetal Auto Focus Laser Cutting Engraving Machine


Product Description:
Non-metal CO2 laser cutting machine with a follow-up auto focus laser head can achieve more shape material cutting or carving. By setting the distance between the laser head and the carved or cut material surface, the laser head automatically adjusts the height along with the fluctuation of the material surface to ensure that the distance and focal length between the laser head and the object remain unchanged, effectively completed the cutting or carving of unlevel or curvered objects.

Features:
Non-metal follow-up auto focus CO2 laser cutting machine is not only accurate in processing, but also can realize automatic focusing according to different shapes of materials. It has a better cutting effect on uneven materials and effectively solves the problem of laser cutting of some special-shaped non-metallic materials.

Materials:
Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.

Technical Parameters


Model

GW-1325C

Working Area

1300*2500mm

Tube type

10.6um CO2 sealed glass tube (RECI / Yongli )

Laser Power

80W / 100W / 130W / 150W / 180W / 220W / 300W

Cooling

S&A Water chiller CW3000 / 5000 / 5200 / 6000

Engraving Speed

0-60,000mm/min

Cutting Speed

0-30,000mm/min

Reposition Accuracy

±0.01mm

Minimum Character Size

English:1mm ; Arabic numbers:1mm

Resolution

1,000--10,000 dpi

File output mode

2.0 USB interface

Machine Power

<3,700W

Support Format and Software

PLT,DST,DXF,DWG.CDR, AI,

Auto CAD, Coreldraw, Photoshop, Metalcut

Working Environment Temperature

0-45°C

Drive system

KD stepper motor + YAKO drivers

Control system

Ruida 6332NM control system + Height Controller

Transmission way

Taiwan PMI Linear Rail + Japan ONK belt

Working table

Knife table

Exhaust smoke system

550W exhaust fan

Working Voltage

110 / 220V; 50Hz / 60Hz

N.W. / G.W.

800KG / 1000KG

Warranty time

2 years for machine, 10--18 months for tube

Package

Plywood case with steel tube

Packing size

3900*2160*1350mm / 4350*2210*1350mm

Delivery time

5--7 working days after received the deposit

Samples


Machine Details


Adopt RECI / Yongli CO2 glass laser tube (80W--300W for option).

Ruida 6332NM control panel + Touch control panel:

Nonmetal Auto Focus Laser head with Seneor & red dot:

Machine control cabinet:

S&A water chiller for laser tube cooling:

Transmission system: PMI Linear Rail + Japan ONK belt + Stepper motor + Omron limit sensor.

Tools box + User Manual + Goggle + Spare parts:

Package:

FAQ


Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machine can both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes. It supports Windows 7 / 8 / 10 and other operating systems.
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length ( the longer, the bigger)
2. Laser tube diameter ( the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 60W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes. Our tools box has goggle when somebody operate machine, pls wear the goggle.

Q: How can I pay my order?
A: We accept T/T, Western Union ,Money Gram paying methods.
Q. When I got GODWORKER Laser cutting machine, I don't know how to use it. What should I do?
A: 1. We will send you the video and manual with the laser machine.
2. If you still have some doubts, please contact us via Telephone / WeChat / Email / WhatsApp, will answer you within 8 hours.
3. Engineer can remote control your PC guide you how to operate it.
4. If necessary, we will dispatch the technician for in-house service (Installation & Training), but you need pay for some fee, like air tickets, hotel and meal, daily salary.
5. If you can come to China, we will offer you free training until you can use machine freely.
Q: What's the warranty on the laser cutting machine?
A: 1. Machine has warranty for 2 years, starting from the delivery date (subject to date on nameplate).
2. Glass laser tube warranty for 10--18 months.
3. No warranty in case of damage due to improper handling.

Any further questions, please do not hesitate to contact us, we will service to you at 7×24 hours.
