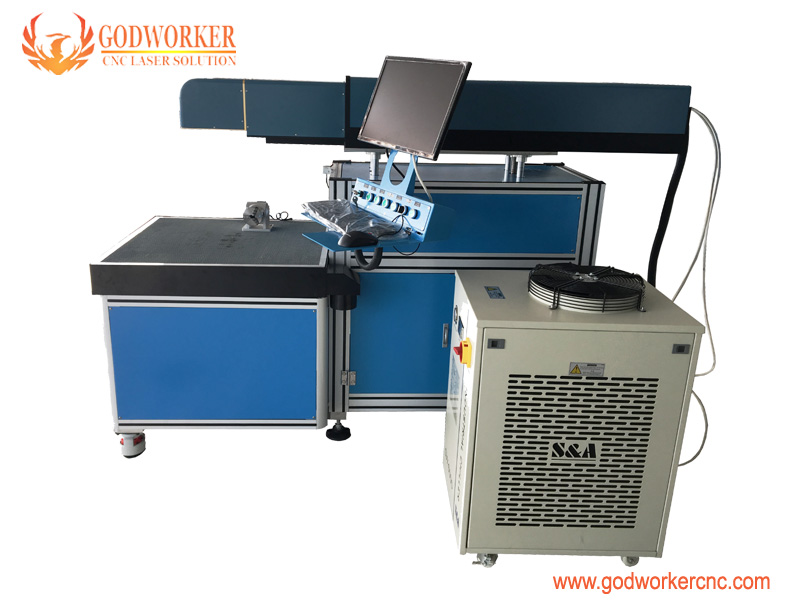

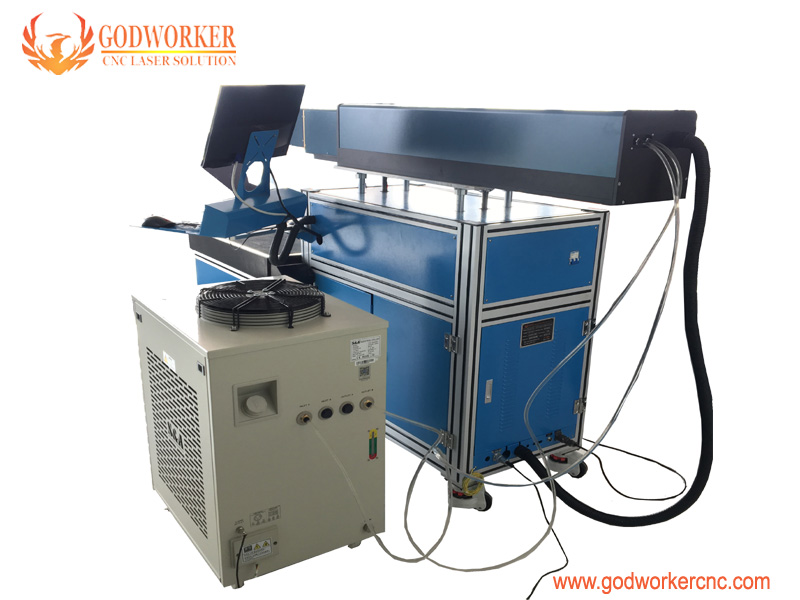

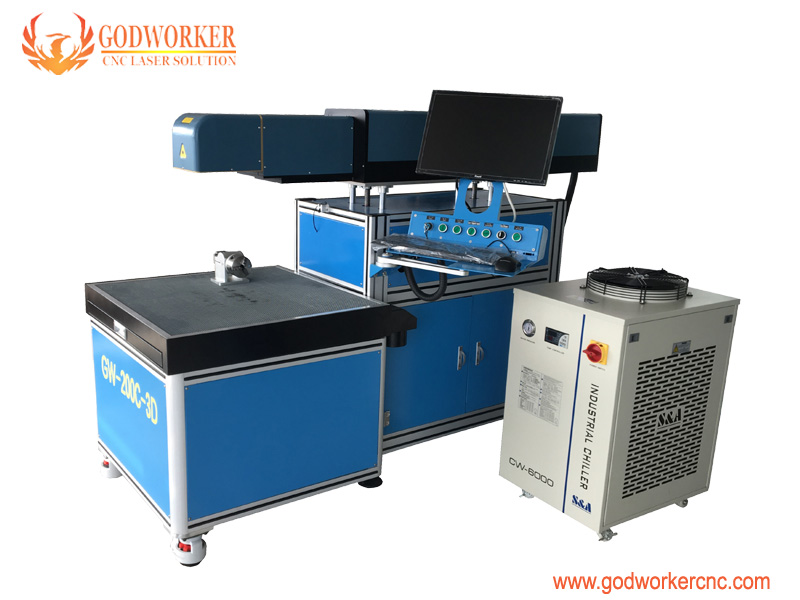

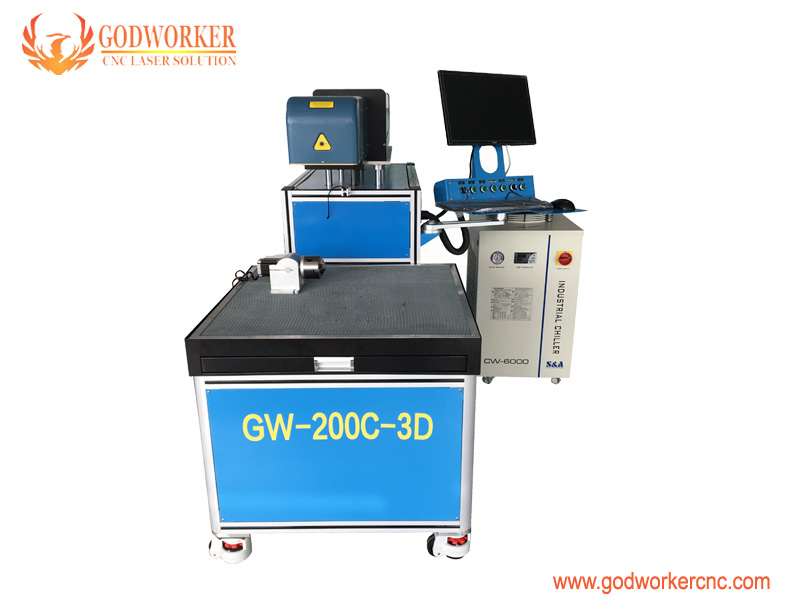

200W Coherent Large Size Dynamic Laser Marking Machine

200W Coherent Large Size Dynamic Laser Marking Machine
Wide Application:
3D Dynamic machine can mark, engrave, cut, hollow on almost all non-metal material, like wood, acrylic, plastic, marble, paper, glass, leather, textile, bamboo, PVC, rubber and so on.

It is widely applied in industry like electronic, machinery, garments, artwork, gifts, greeting card, packing, advertisement ect.
It can process with any pattern, signs, bar code, letters, serial number as request.


1. Unique optical path design based on laser beam characteristics, low optical loss with 20% efficiency increased.
2. Rapid response with high speed TBI ball-screw of Z axis.
3.High stability with Feeltek OES servo motor galvanometer.
4. Original USA J2 coherent CO2 laser tube with long working lifetime,is characterized by large power, high-quality light spot, excellent performance, stable power and long service life(40k hours).
Especially when you cut paper card, the cutting edge is very smooth and thin.
5. Tiny beam spot , making more precision.
6. Full sealed and maintenance-free laser optic system which key components all imported from USA, realizes usage at installation without adjustment.
7. Feeltek 3 axis laser scanning system features compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc.
8. The heat elimination method of the scanning motor and the drive board has been taken into full consideration during the design of the system, so as to ensure the stability of the system under long-hours working condition.
9. High-precision and high-speed marking/cutting, efficiency is 20% higher than other similar models.
10. This equipment can run more stably and with even longer service life by utilizing water cooling on both the RF laser and extender lens.
11.USB interface bus has been adopted for the control card, which supports offline operation, stepper motor with X, Y, Z and R axis (X, Y and Z axis linked.), support start-up and stopping marking by external control.
12. Rotary worktable system is optional, thus, accomplish marking on cambered surface.
13.Strong graphics drawing and editing functions enable direct marking of color graphic or marking after color convert from RGB to grey scale.
14. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.
15. Industrial computer support Windows 7, XP or 10.
16. Laser is non contact process, there is no distortion. As laser marking is to gasify the surface of material, the marking will laser forever.

Technical Parameters



Laser wavelength


Laser source

USA Coherent J2 CO2 RF tube

Working table

Aluminum honeycomb

Laser Frequency


Galvanometer speed


Marking area

600*600mm --- 800*800mm


Feeltek OES Servo motor Galvo

Optical lens

USA IIVI F-theta lens

3 axis Dynamic focus system

Feeltek C30-3DS


LenMark 3DS / 3D

Minimum Line Width


Minimum Character


Marking Depth

≤5mm (depend on materials)

Repeat Accuracy


Dynamic Axial Respone Time


Beam quality


Marking model


Working Environment

Clean and Dust Free or Dust less

Edit model

Editor mode of computer software


220V(±10%), 50/60Hz

Cooling way

S&A CW6000 water chiller

Gross power


Gross Weight



2100*1590*960mm ( Machine )

610*680*1110mm ( cooling system)


Machine Details

Laser tube:  Coherent J2 CO2 RF metal tube ( Synrad, Coherent, Rofin brands for options 100W / 150W / 300W / 500W).

Dynamic focus system: Feeltec C30 3D axis system.

Control cabinet: MW Power supply, Galvo 24V power supply, JCZ Control card, etc.

Control swtich: Yijia brand, top brand and high quality, can option schneider.

Philips Monitor:

Machine accessories: Power cable, U-disk of software, tools, User Manual, Foot Switch, Test Report, etc.


Machine package:

Q: What are the consumables of the CO2 laser marking machine?
A: Mainly electricity, basically no other consumables.
Q: Are your machine can increase the production?
A: Yes of course, more details you can contact us directly.
Q:How long is the working life of the machine?
A: The theoretical working life of the laser source is 30,000--40,000 hours, which depends on the environment in which it is used and laser tube brands.
Q: Can I get some discount if I order more ?
A: Yes,The more you order,the more you save.
Q: How long your machine can be shipped?
A: When you confirmed the order and transfer the deposit, 3 working days for the small order, 10~15 days for the bulk.
Q: Can you offer me OEM service?
A:Yes,However,you should give me more request and info as you can.
Q: How to choose most suitable machine?
A: 1. Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
 2. What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
 3. How big working area you need?
4. or Please provide a photo of the product you used before or advise us your needs, we will give suggestion.
Q: What's your MOQ?
A: MOQ 1 set. If more, we can talk about discount. You can mix it with other laser machine parts shipping together .
Q: What is your terms of payment ?
A:  30--100% in advance by T/T in advance, balance before shippment.
Q: Can I get a sample to check the quality ?
A: Yes, we are glad to offer you sample for test, And there is a discount for Trade Assurance Sample Order.
Q: If there is any technical help after we receive the machine?
A: Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
Q: If there is some problems for parts during warranty period, will your company repair or replace for me?
A: Yes, we will. Please send the main part back to our company, we will repair and send  back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free.  PS: Not including the consumable parts and Man-made damage.
Q: Will the machine will send to my door?
A: 1. Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you  find broker help you to do customs clearance ).
2. For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
Q: Can I buy spare parts from your company if I have spare parts in the future?
A: Yes, please. Our company supply spare parts for all of our machine.
Q: Give me reasons to chose your company ?
A: 1.Professional factory with competitive price;
2. High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine.
3. Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4. Strict implementation of after-sales warranty.
5. The important is that you will receive the corresponding goods after you do payment.

Leave your message


Name *

Email *

Phone *

Country *

Your Message *

  • Brand:
  • Model:
  • MOQ:
    1 set
  • Payment Terms:
    T/T 30% deposit advance, 70% payment before shipment
  • OEM

Product Name:

Contact Now
The 200W Coherent 3D Dynamic CO2 Laser Marking Machine is specialized design for Denim / Paper Laser Marking Application, which is widely used in the jeans producing / Paper Card Cutting, and it is also the most popular model in the market.
