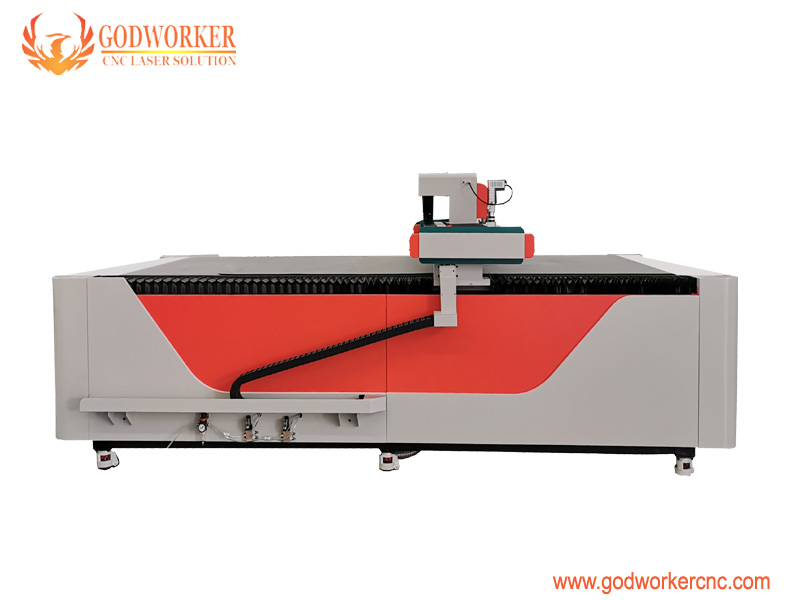

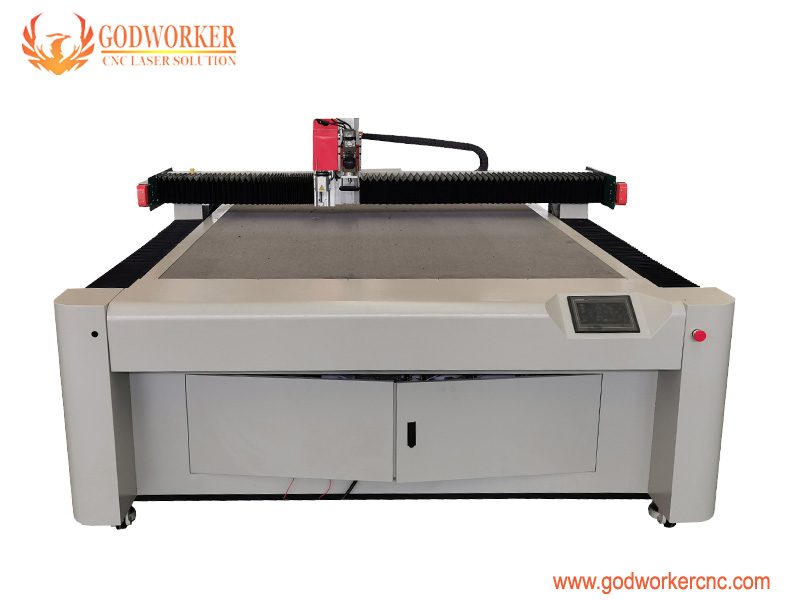

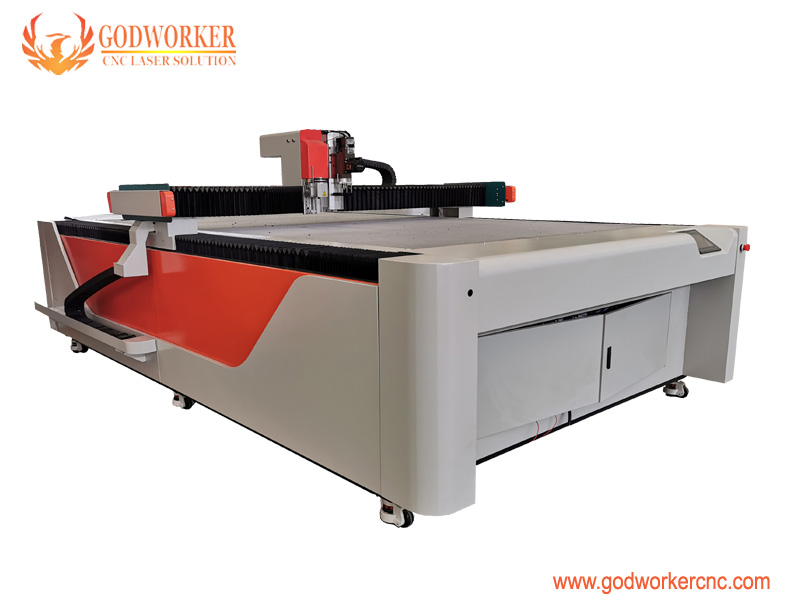

1625 1630 oscillating knife cutting machine for carpet, car seat
CNC Cutting Machine are more stable and solid with steel structure, which are based on a modular design concept that lends them greater flexibility and adaptability than that of any other system on the market.
Automatic search for anchor point and continuously cut the photo polymer rolling materials with non-oscillating tool.
It’s easy to cut different thickness of grey board with precise setting of the various cutting angles.
With the automatic lubrication system (timing, quantitative, fixed), it is for non-stop production.
With high sensitivity anti-collision device and automatic sensor inside, it is security & reliable.
Advantage:
The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
Machine can induce draft separately and easily cuts small pieces.
The anti-collision and the built-in auto-sensing devices ensure the security of machine.
High efficiency can be realized without making a high-cost knife model.
Designed for production with small quantities and can save on costs while maintaining speed and accuracy.
|
Model |
GW-1625N / 1630N oscillating knife cutting machine |
|
|
Working area |
2500*1600mm |
3000×1600mm |
|
Rated power |
12KW |
|
|
Fixed mode |
Flat plate table |
|
|
Multi-function head |
Oscillating knife head / Round knife / V-cut head / Kiss cut head / Penumatic head / Pressure wheel / Spindle for option |
|
|
Tool configuration |
Multiple cutting knives |
|
|
Safety device |
Using infrared sensors, responsive, safe and reliable. |
|
|
translational velocity |
800-1200mm/s |
|
|
Cutting speed |
200-800mm/s(according to different cutting materials) |
|
|
Cutting thickness |
≤100mm(according to different cutting materials) |
|
|
Cutting materials |
Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber |
|
|
Repeated accuracy |
≤0.1mm |
|
|
Machenical Precision |
Max. 0.02mm |
|
|
Driving system |
Delta servo motors + drivers |
|
|
Transmission system |
Helical gear rack + HIWIN linear rail (X,Y axis 20mm) |
|
|
Control system |
Double 32bit RISC CPU + Huge reparogrammable logic gate arrays FPGA |
|
|
Operation mode |
Operating flat form+Data output control software |
|
|
Support format |
AI, PLT, DXF, CRD, etc |
|
|
Control Panel |
Ruida LCD touch screen |
|
|
Capacity |
4GB |
|
|
Instruction system |
HP-GL compatible format |
|
|
Voltage |
380V +220V, 50/60Hz; |
|
|
Vacuum pump |
7.5KW vacuum pump |
9.0KW vacuum pump |
|
Packing size |
3550*2150*1600mm |
4300*2150*1600mm |
|
Gross Weight |
1300KG |
1500KG |
Vacuum table: Adopt sophisticated aluminum sophisticated table design, platform width can be customized size, theoretical length is unlimited; vacuum suction design, software can choose to control 8 suction area.
Imported Germany fiber mat that durable, good permeability, and stable shape.

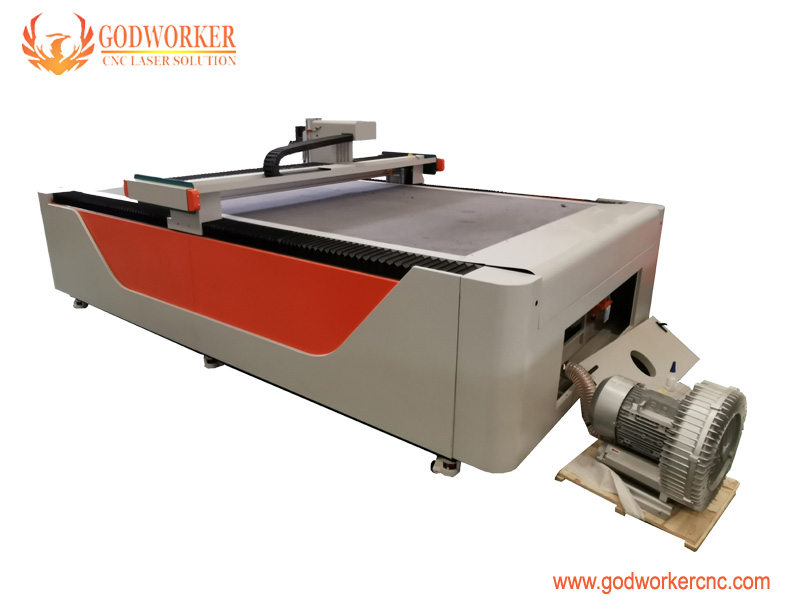

Vacuum Pump: Adopt strong power 7.5KW air vacuum pump for fixing materials while machine cutting materials.
Safety Sensor: Y axis has 2 sets infrared sensor to protect operator or other human body safety.
Control cabinet: Control board, drivers, breakers.
A: We are a factory and the one manufacturers of vibrating knife cutting machines in North of China with about 10 years experiences in this field.
Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experiencedprofessional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
Q: What is the difference between your product and the laser cutting machine?
A: 1. Our products are cut with vibrating blades, no laser, no pollution, and create a good working environment for workers.
2. Blade cutting can ensure the edge of material cutting smooth without burning.
Q: Does your price have a discount for dealers?
A: Yes, we have a favorable policies for dealers. Please tell me your order quantity or annual purchase quantity. The price will be adjusted according to the order quantity. For details, please consult our sales staff.
Q: How is your after-sales policies?
A: 1. The machine warranty is 12 months after shipment date. During the warranty period, the main accessories(except the wearing parts) are replaced free of charge because of the quality problems under the normal operation. Others, under improper operation need to pay the parts cost and freight.
2.We have an experienced after-sales team 24h online service and a completafter-sale system. Factory trainning support, Video technical support, online support, Engineers available to service machinery overseas.
3. Inquiries are typically answered within 24 hours.
Q: Can you provide ODM and OEM services?
A: Yes, our R&D team with an average of 10 years experiences, the ODM&OEM service are satisfied with our customers.
-
Brand：Godworker
-
Model:GW-1625N；GW-1630N
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes
Faster speed running, low noise (< 38.6db).
Adopt Germany Igus cable, it has Anti-interference that can make sure machine long time continue working stable.
