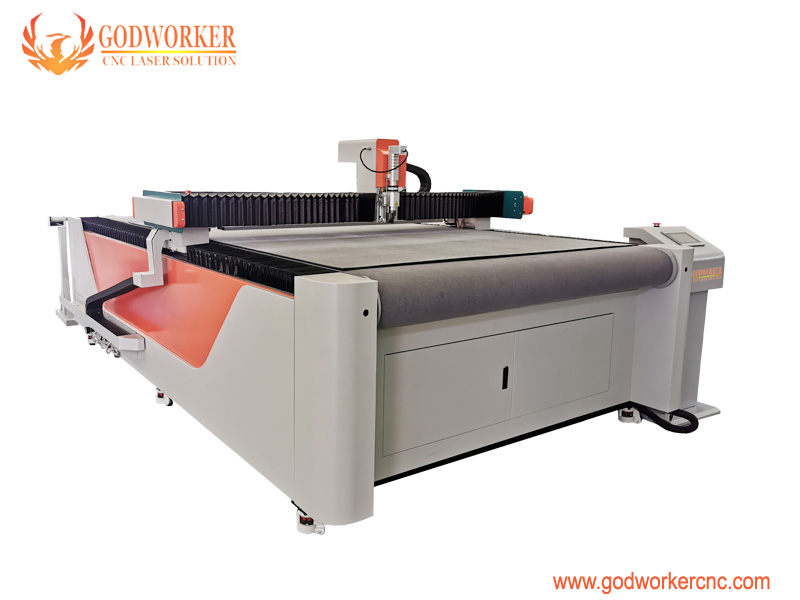

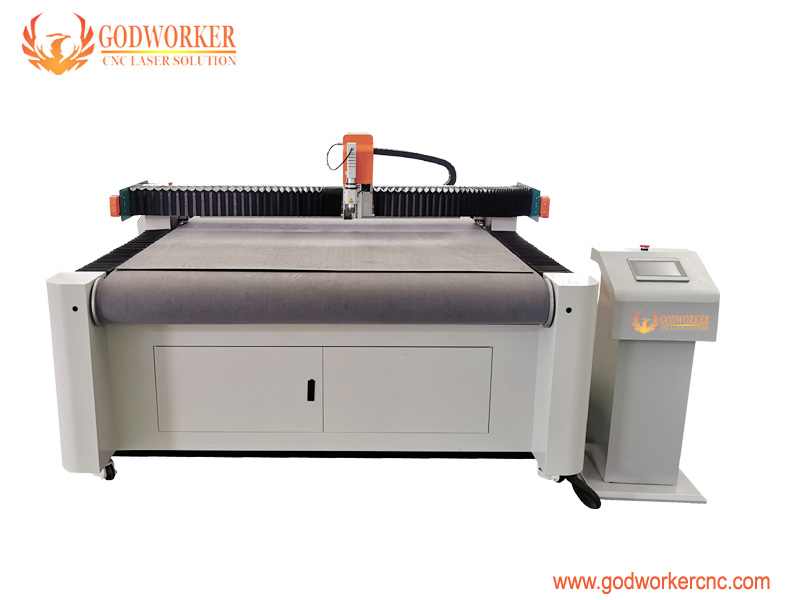

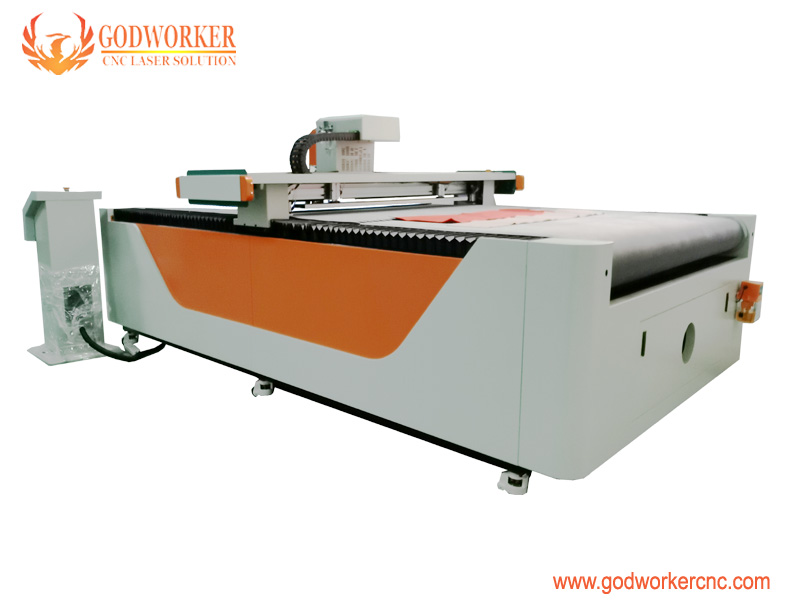

New design 1625 1630 automatic vibrating knife cutting machine


New design 1625 1630 automatic vibrating knife cutting machine


Features:
1. Welded structure by thick steel tube welding under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.High accuracy, long service time, steady movement.
2. Adopt HIWIN Linear Rail make sure the machine accuracy and can withstand large load.
3. Mechanical and electrical design, adopt excellent top brand electrical accessories.
4. Imported cutting heads can ensure the machine can long time stable cutting.
5. Imported high precision rack: Cutting the hard material with stronger power, and ensure the cutting with higher precision.
6. Auto lubricating system, one touch can finish periodic maintenance easily.
7. Intelligent protection work to prevent incorrect operation etc mesa, may cause the damage of mesa.
8. Multi cutting heads be used in combination according to the actual situation for choosing those heads.
9. Combination of the digital control system and CAM software, is adopted to realize automatic feeding, typesetting, and cutting. So that the machine tool can run more accurately and efficiently, and save a lot of costs for the enterprise.

Technical Parameters


Model

GW-1630NA Automatic Oscillating knife cutting machine

Working area

3000×1600mm

Machine size (mm)

3350×2200×1350mm

Rated power

12KW

Fixed mode

Auto Feding Conveyor Table

Multi-function head

Oscillating cutting head

Tool configuration

Multiple cutting knives

Safety device

Using infrared sensors, responsive, safe and reliable.

translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickness

≤100mm(according to different cutting materials)

Cutting materials

Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber

Repeated accuracy

≤0.1mm

Machenical Precision

Max. 0.02mm

Driving system

Delta servo motors + drivers (Y:750W, X:450W, Z:100W)

Transmission system

Helical gear rack + HIWIN linear rail (X,Y axis 20mm)

Control system

Double 32bit RISC CPU + Huge reparogrammable logic gate arrays FPGA

Operation mode

Operating flat form+Data output control software

Support format

AI, PLT, DXF, CRD, etc

Control Panel

Ruida touch screen

Capacity

4GB

Voltage

380V +220V, 50/60Hz;

Vacuum pump

9.0KW vacuum pump

Packing size

3750*2250*1540mm

Gross Weight

1500KGS

Samples


Machine details

Imported knife: using simple replaceable head design concept, according to the actual cutting process and tool head replacement with different functions.
Control Panel: Multi-language for option, easy operate interface.
Driving system: Delta servo motors drives control mode, preset storage knife depth, knife pressure, speed of movement.
Guide rail: Adopt Taiwan HIWIN linear rail and gear rack, it can make sure working high speed and precision.

Vacuum table: Adopt sophisticated aluminum sophisticated table design, platform width can be customized size, theoretical length is unlimited; vacuum suction design, software can choose to control 8 suction area.

Imported Germany fiber mat that durable, good permeability, and stable shape.

Pneumatic pressure plate: assitance for auto feeding materials, special for multi layers fabric / textile.

Vacuum Pump: Adopt strong power 9KW air vacuum pump for fixing materials while machine cutting materials.

Safety Sensor: Y axis has 2 sets infrared sensor to protect operator or other human body safety.

Control cabinet: Control board, drivers, breakers.

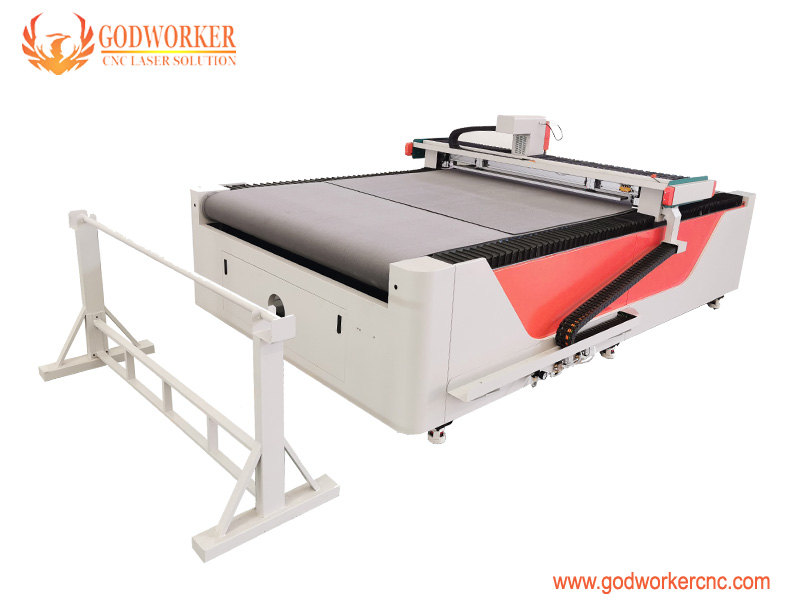

Feeding bracket: loading roll materials, more easy conveyor.

Auto Lubracation: Regular automatic lubrication guide rail.


FAQ

Q: Are you a factory or Trading company?
A: We are a factory and the one manufacturers of vibrating knife cutting machines in North of China with about 10 years experiences in this field.
Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experiencedprofessional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
Q: What is the difference between your product and the laser cutting machine?
A: 1. Our products are cut with vibrating blades, no laser, no pollution, and create a good working environment for workers.
2. Blade cutting can ensure the edge of material cutting smooth without burning.
Q: Does your price have a discount for dealers?
A: Yes, we have a favorable policies for dealers. Please tell me your order quantity or annual purchase quantity. The price will be adjusted according to the order quantity. For details, please consult our sales staff.
Q: How is your after-sales policies?
A: 1. The machine warranty is 12 months after shipment date. During the warranty period, the main accessories(except the wearing parts) are replaced free of charge because of the quality problems under the normal operation. Others, under improper operation need to pay the parts cost and freight.
2.We have an experienced after-sales team 24h online service and a completafter-sale system. Factory trainning support, Video technical support, online support, Engineers available to service machinery overseas.
3. Inquiries are typically answered within 24 hours.
Q: Can you provide ODM and OEM services?
A: Yes, our R&D team with an average of 10 years experiences, the ODM&OEM service are satisfied with our customers.
