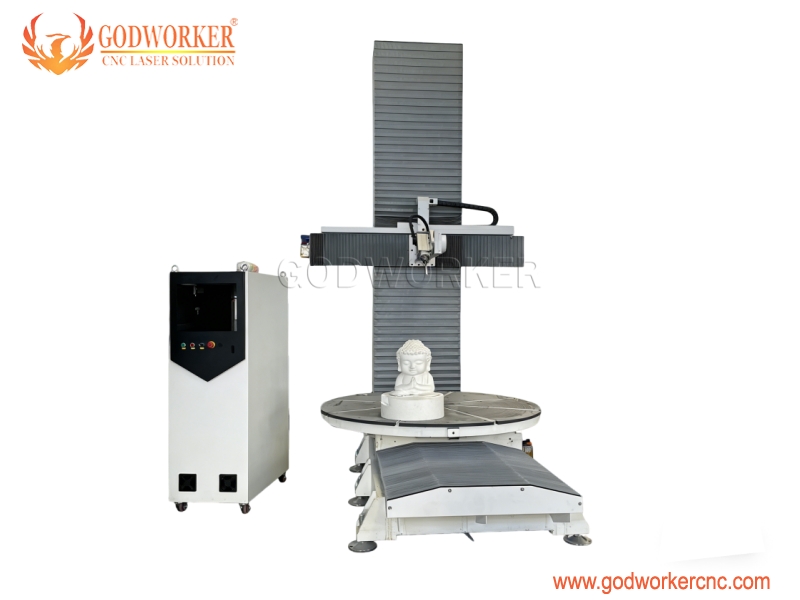

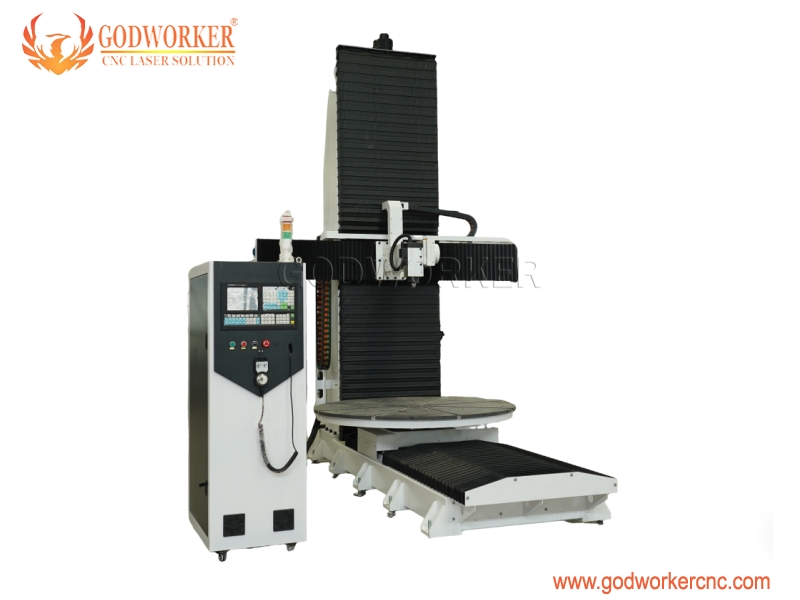

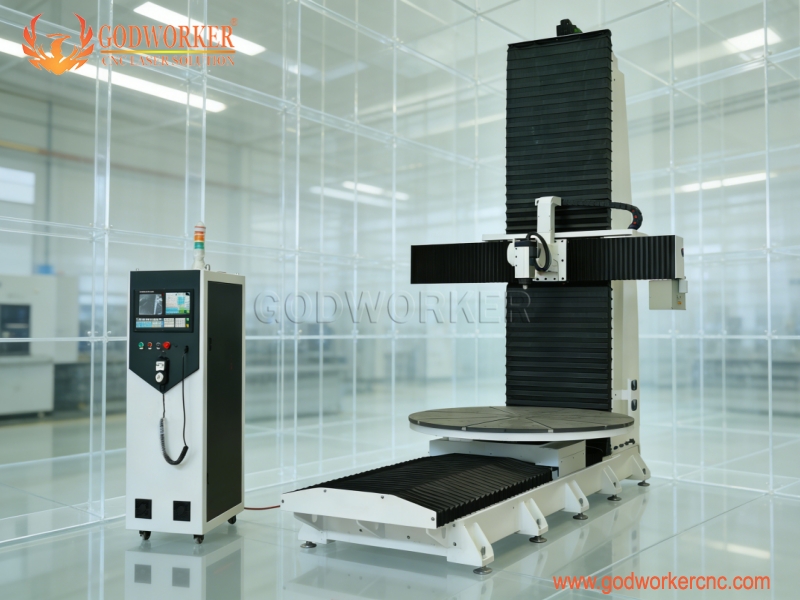

Vertical 5 Axis CNC Engraving Machine for wood foam
Application:
Godworker vertical 5 Axis cnc machine adopts a vertical structure with a spindle head and a rotary table. It is primarily targeted at vertical engraving and milling, as well as side drilling and processing of composite material molds such as foam, wood molds, and carbon fiber.
Performance characteristics:
Large-scale three-dimensional machining with engraving and milling capabilities, covering diameters ranging from 1500mm to 2000mm and heights up to approximately 2500mm to 3000mm.
Machine Details:
|
Model |
GW-1525MF |
|
Platform diameter |
φ1500mm-2000mm |
|
Working height |
2500mm-3000mm |
|

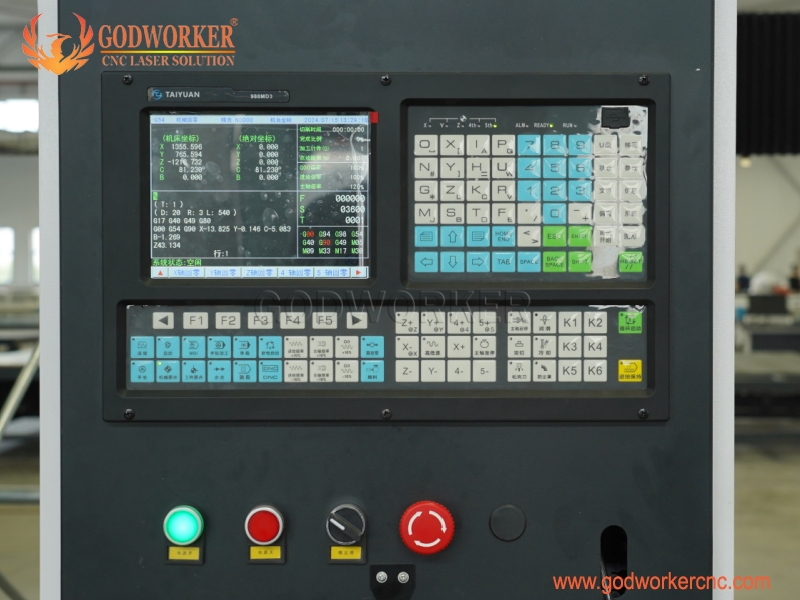

Control system |
5 axis TAIYUAN system |
|

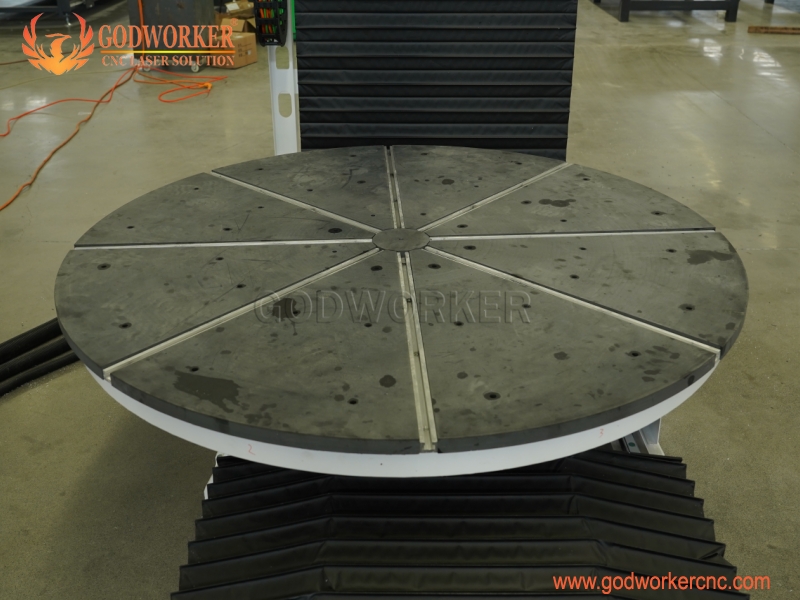

Table type |
Square tube +rotary platform |
|

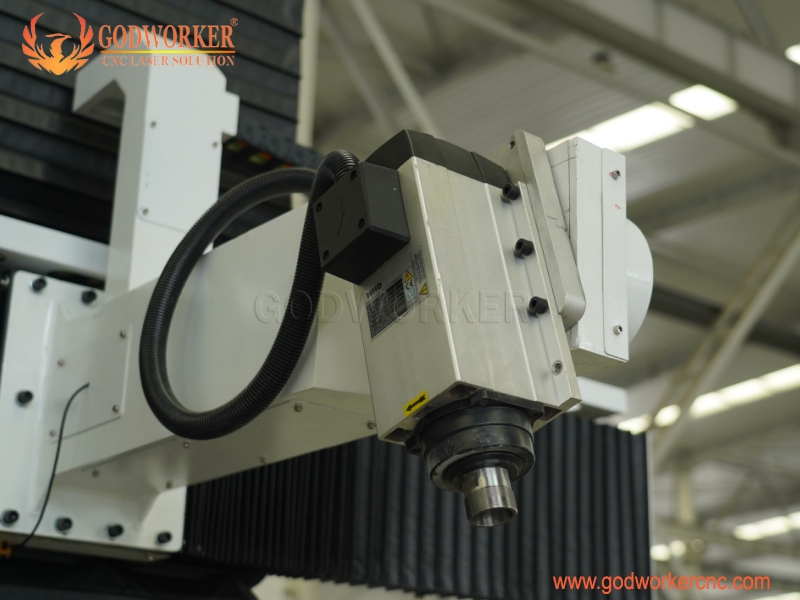

Spindle |
6.0Kw air cooling spindle |
|
Spindle speed |
18000RPM |
|
Collet size |
3.175mm-φ20mm |
|
Rack pinion |
1.5M helical gear rack |
|
Driver and motors |
Servo motor and drivers |
|
Reducer |
Japan Shimpo reducer |
|
Voltage |
AC 380V/50HZ |
|
Application |
EPS foam,wood, carbon fiber, plastic and other composite material |
|
Warranty |
12 month |
Pls share your products information, will customized most suitable size and specifications for you.
Samples show:
 |
 |
-
Brand：Godworker
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes
