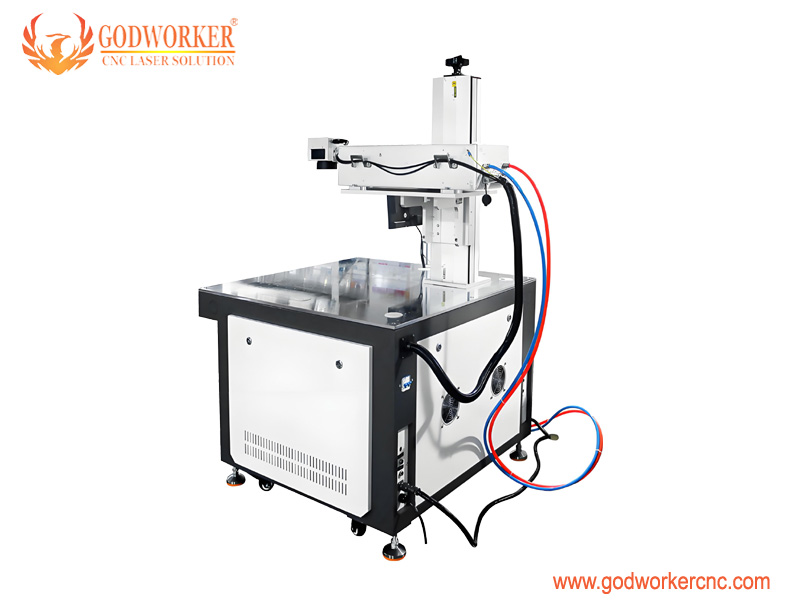

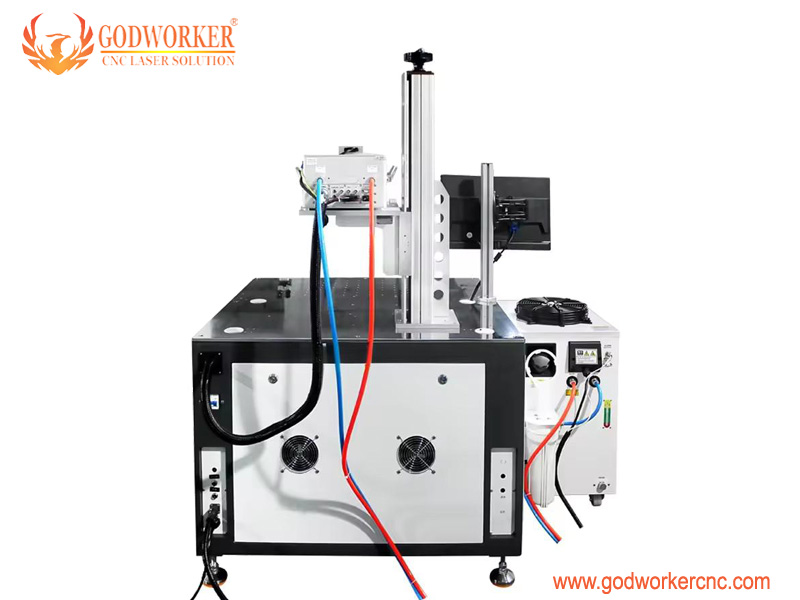

Infrade Picosecond Laser Marking Machine for Medical Instruments Black Marking, Mirror Steel Rainbow Marking
Application:
It is widely used for surface marking of metals or non metals to compensate for the lack of infrared laser processing capability. Mainly suitable for thin materials, ceramic drilling and marking, glass ink removal, plating removal, colorful marking, micro and invisible QR code marking, medical device metal black/white marking, fine marking and cutting of thin film materials, cutting semiconductor wafer microfabrication, materials including electronic product shell marking, battery charger, data cable, mobile phone, computer accessory marking, electronic components, jewelry, clock marking, PCB, FPC marking and cutting, glass product marking, metal, alloy marking and plastic material marking, etc.
Features:
Permanent: The mark will not fade due to environmental factors such as touch, acidic and alkaline gases, high temperature, low temperature, etc.
Strong anti-counterfeiting: The mark is difficult to imitate and change, and has strong anti-counterfeiting performance.
High precision: Clear and precise markings.
Fast speed: narrow pulse width, high peak power, can quickly complete marking and improve production efficiency.
Easy to operate: Windows interface, supports multiple languages, multiple file formats, such as PLT, DXF, BMP, PCX, etc.
|
Model |
Infrade Picosecond Laser Marking Machine |
|
Laser device |
INNO Infrared picosecond laser |
|
Central emission wavelength: |
1064nm |
|
Average output power |
20W / 30W / 50W |
|
Beam Radiation Angle |
<2mrad |
|
Modulation frequency range |
50KHz~500KHz |
|
Beam Quality |
<1.2M2 |
|
Pulse width |
<800fs |
|
Marking Depth |
>1mm (depending on the materials) |
|
Maximum speed |
12000mm/s |
|
Resolution |
0.001mm |
|
Repeat location accuracy |
0.003mm |
|
Single pulse energy |
Max 2.5mj |
|
Long-term average power instability |
<3% |
|
Galvanometer |
SINO |
|
F-Theta lens |
Wavelength 110*110mm -- 200*200mm |
|
Working stability (8h) |
＜±1%rms |
|
Minimum line width |
30um |
|
Minimum character height |
0.2mm |
|
Sheet label marking time |
≤ 90 s (depend on the content) |
|
Control system |
BJ-JCZ |
|
Laser power supply |
<2700W |
|
Cooling mode |
water cooling S&A chiller |
|
The Max input power |
220V AC, 50/60Hz |
|
Environmental Requirement |
0~35°C, humidity≤90% |
|
Graphic Format Supported |
bmp,jpg,gif,tga,ai,dxf,dst,plt,etc. |
|
Warranty |
1 year |
|
Package |
Exported plywood case |
Laser source: adopt international top brand laser source INNO.
Galvo: improted Germany Scanlab IV 10 high speed galvo.
Field Lens: Imported Singapore Ronar Smith F-theta lens 110--200mm for option.
Power supply: adopt high quality top brand MW power supply.

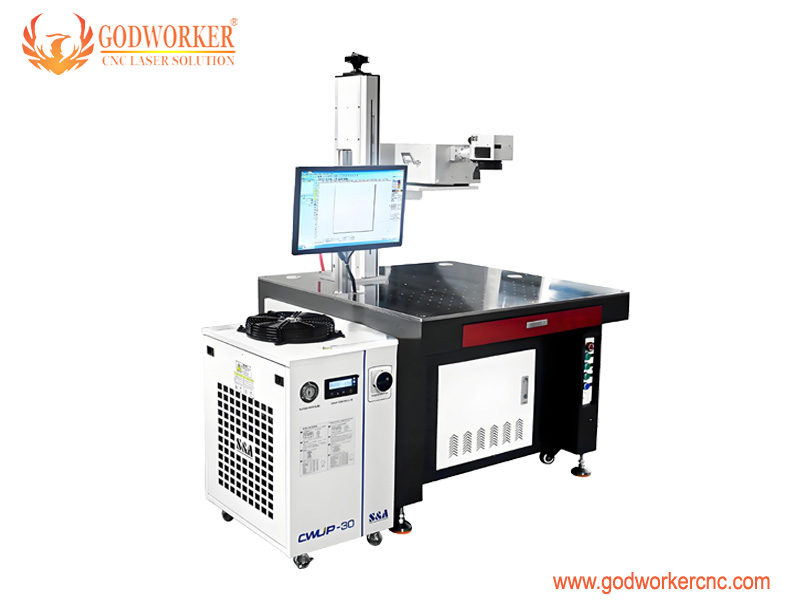

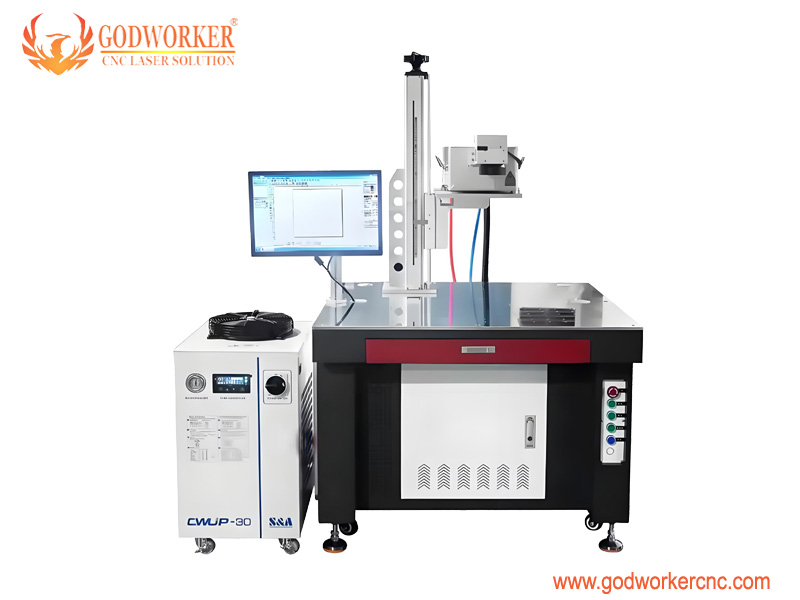

Water chiller: adopt S&A CWUP-30 water chiller.
Machine accessories: Power cable, U-disk of software, tools, User Manual, Padel, Test Report, etc.
Package:
-
Brand：Godworker
-
Model:GW-20FIP；GW-30FIP；GW-50FIP
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes
