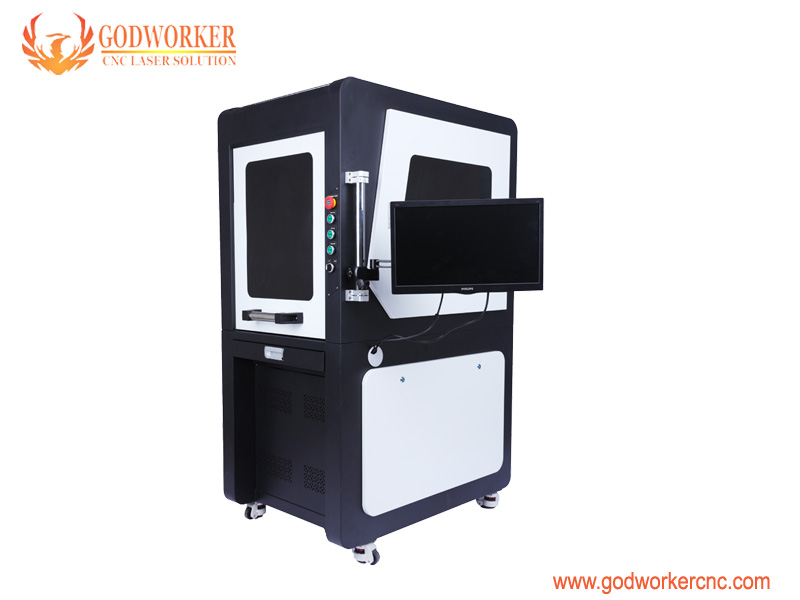

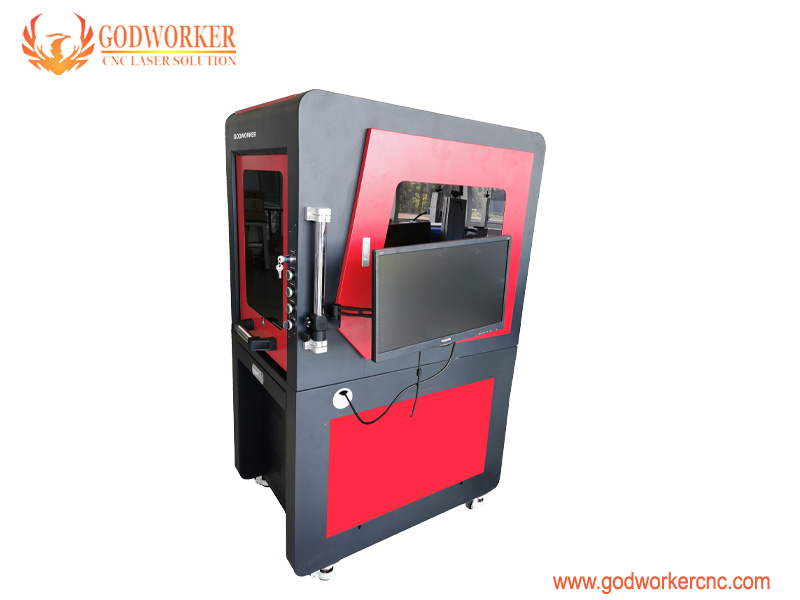

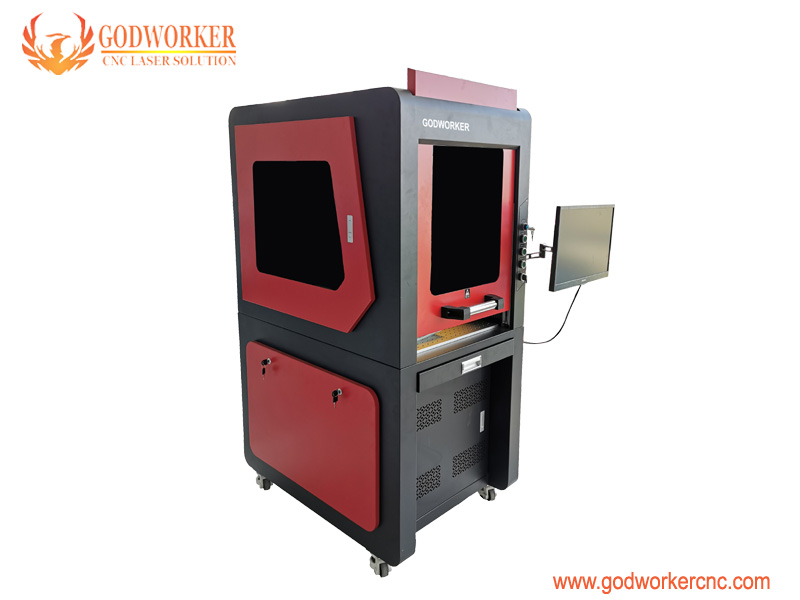

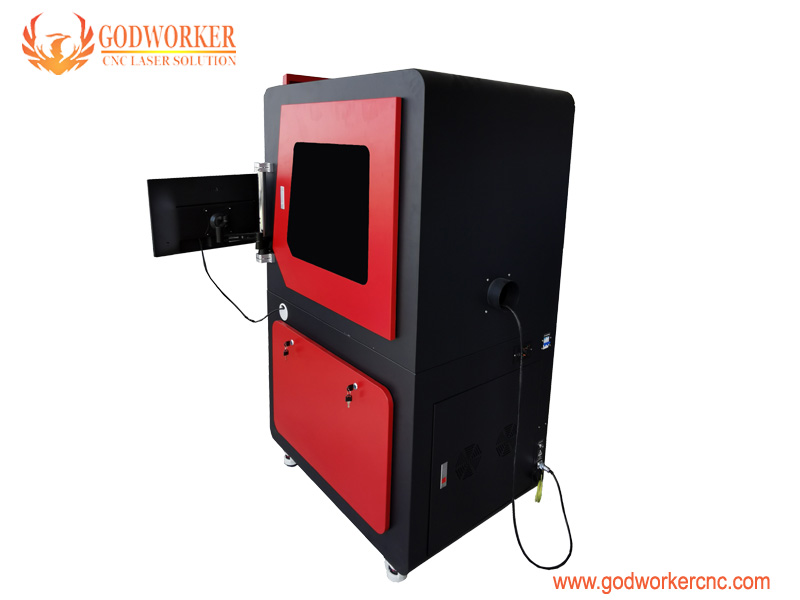

Fully encloed type CO2 laser marking machine 30W 60W coherent

ꄴPrevious： null

ꄲNext： 30W 60W CO2 Online Flying CO2 Laser Marking Machine for Wood Pencil Wine Glass

Features:

1. Laser power is controlled by the software and it is adjustable, it applies to cut and mark
nonmetal materials on big area.
2. Adopt USA Synrad CO2 RF laser tube which has excellent performance and long service
span (20k hours).
3. Adopt imported SINO high-speed galvanometer system which has high speed, high
precision and stable performance.
4. Adopt imported optics lens, low loss, excellent focalization performance.
5. The marking software is compatible with CorelDraw, AutoCAD, Photoshop etc. a variety
of software output files. Support PLT, AI, DXF, BMP and other documents, directly using
SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and
two-dimensional code marking.

Application:

Paper leather, cloth, organic glass, epoxy resin acrylic, Wool products, plastics, ceramics, crystal, jade, bamboo and wood products.

Model	GW-30CM	GW-60CM
Laser power	30W	60W
Laser source	DAVI / SYNRAD / COHERENT
Laser wavelength	10.6um
Galvanometer speed	8000mm/s
Q-frequency	20KHz~30KHz
Marking area	*110110mm / 175175mm / 300300mm**
Galvo scanner	SINO 7110 high speed Galvo
Minimum Line Width	0.02mm
Minimum Character	0.15mm
Marking Depth	0 ~2mm (depend on materials)
Repetition Accuracy	±0.005mm
Controller	BJ-JCZ + Ezcad software
Marking format	bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.
Use temperature	0--40°C
Operating Humidity	Run humidity less than 95% relative humidity
structural materials	High quality aluminum alloy
Safety Protection Class	IP54
Laser Generator safety class	IV class
Power	220V±10%, 50/60HZ
The engine power	<2700W
Gross Weight	150KG
Packing size	980mm1050mm1800mm

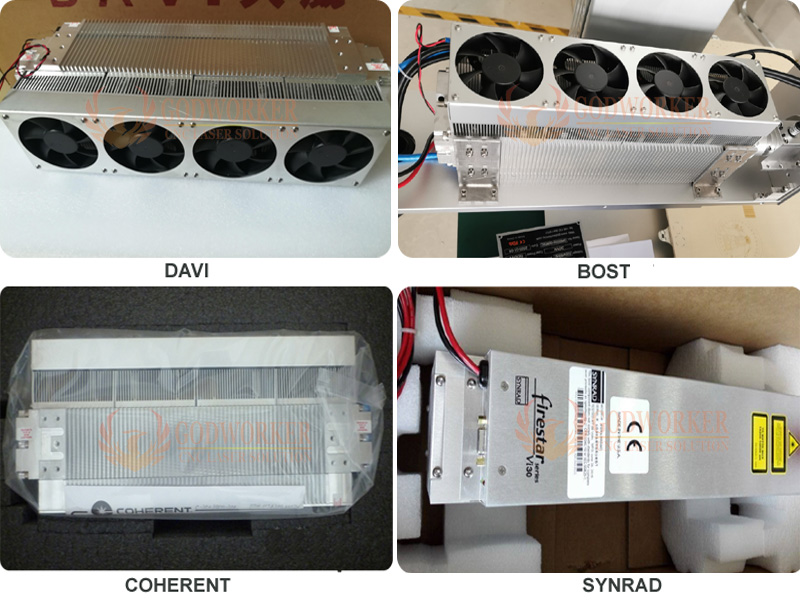

Laser Source: Adopt USA SYNRAD / China DAVI CO2 RF metal tube, pulsed CO2 lasers offering. It has excellent laser beam quality makes for a wide range of nonmetal materials processing applications.

SINO Galvo: High speed SINO Galvo SG7110 .

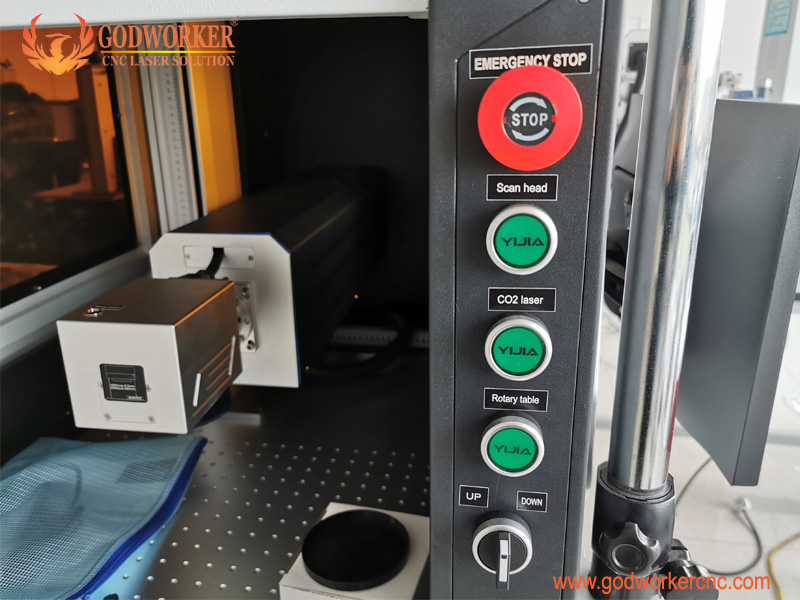

Control swtich: Yijia brand, top brand and high quality, can option schneider.

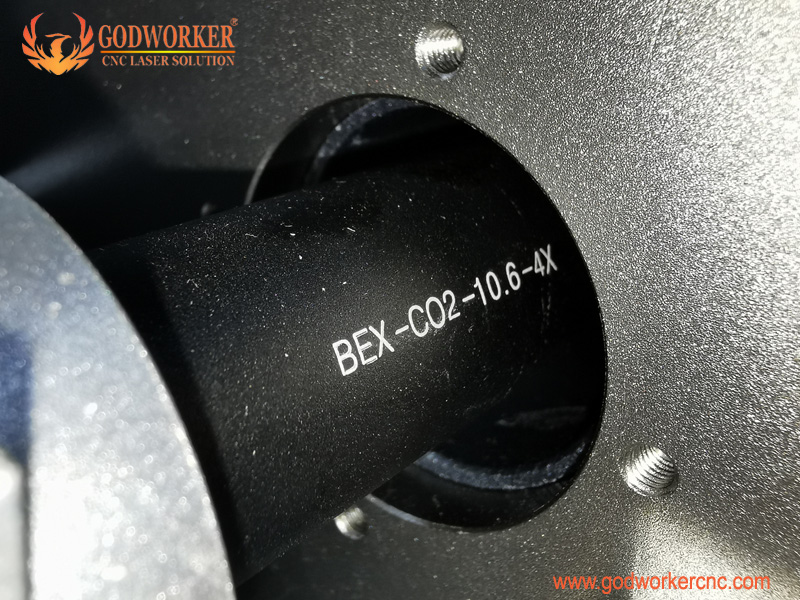

Beam expander good for laser beam can marking diffierent size materials.

Q: What are the consumables of the fiber laser marking machine?
A: Mainly electricity, basically no other consumables.
Q:How long is the working life of the machine？
A: Laser source life time is 10,000 hours.
Q: Can I get some discount if I order more ?
A: Yes, more sets more cheaper.
Q: How long your machine can be shipped?
A: When you confirmed the order and transfer the deposit, 3 working days for the small order, 10~15 days for the bulk.
Q: Can you offer me OEM service?
A:Yes,However,you should give me more request and info as you can.
Q: How to choose most suitable machine?
A: 1. Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
2. What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
3. How big working area you need?
4. or Please provide a photo of the product you used before or advise us your needs, we will give suggestion.
Q: What's your MOQ?
A: MOQ 1 set. If more, we can talk about discount. You can mix it with other laser machines or parts shipping together .
Q: What is your terms of payment ?
A: 30--100% in advance by T/T in advance, balance before shippment.
Q: Can I get a sample to check the quality ?
A: Yes, we are glad to offer you sample for test, And there is a discount for Trade Assurance Sample Order.
Q: If there is any technical help after we receive the machine?
A: Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
Q: If there is some problems for parts during warranty period, will your company repair or replace for me?
A: Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including the consumable parts and Man-made damage.
Q: Will the machine will send to my door?
A: 1. Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do customs clearance ).
2. For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
Q: Can I buy spare parts from your company if I have spare parts in the future?
A: Yes, please. Our company supply spare parts for all of our machine.
Q: Give me reasons to chose your company ?
A: 1.Professional factory with competitive price;
2. High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is included and satisfied → Professional plywood package to avoid damage → shipping machine.
3. Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support to our clients for free. You can talk with them at any time if you need.
4. Strict implementation of after-sales warranty.
5. The important is that you will receive the corresponding goods after you do payment.
