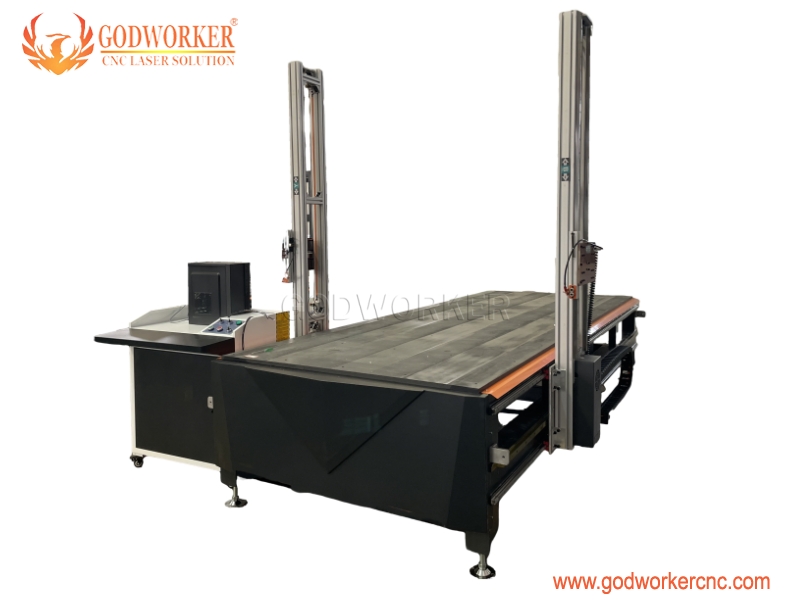

Hot Wires Foam CNC Cutting Machine
Godworker Hot Wires Foam Cutting Machine
Godworker Hot Wire Foam Cutter is a high-performance tool for precise shaping of EPS, XPS, polyurethane foam and styrofoam. With advanced nichrome hot wire technology, it cuts smoothly without dust or waste, ensuring clean, professional edges.
Widely used in construction, advertising, packaging, aerospace, architecture and arts & crafts, it streamlines workflow, reduces labor costs and expands product lines.

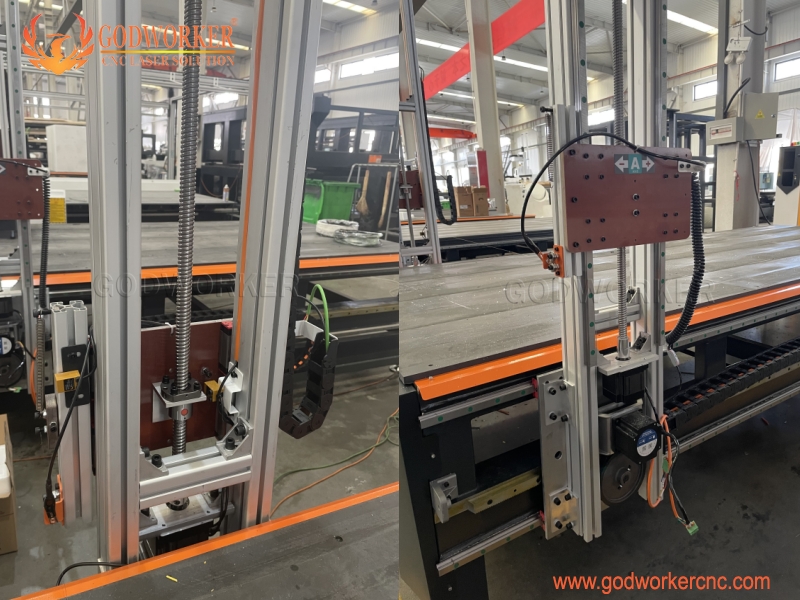

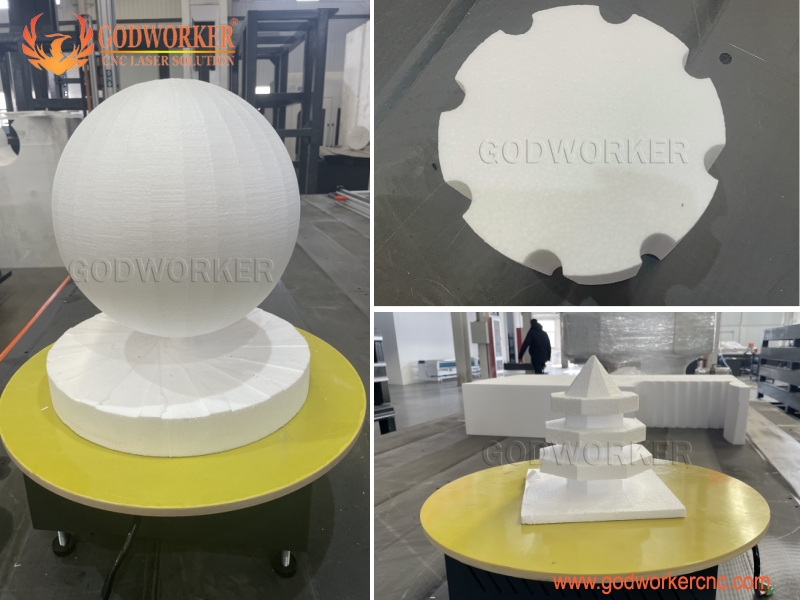

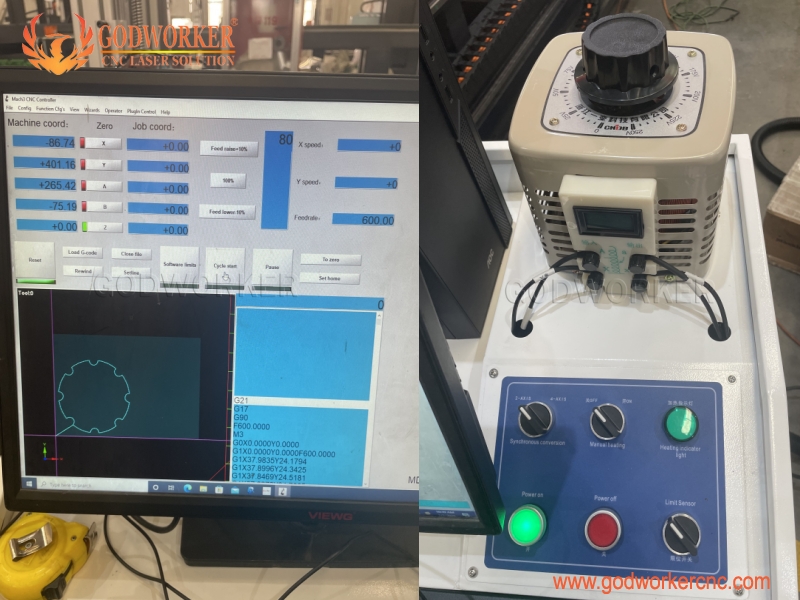

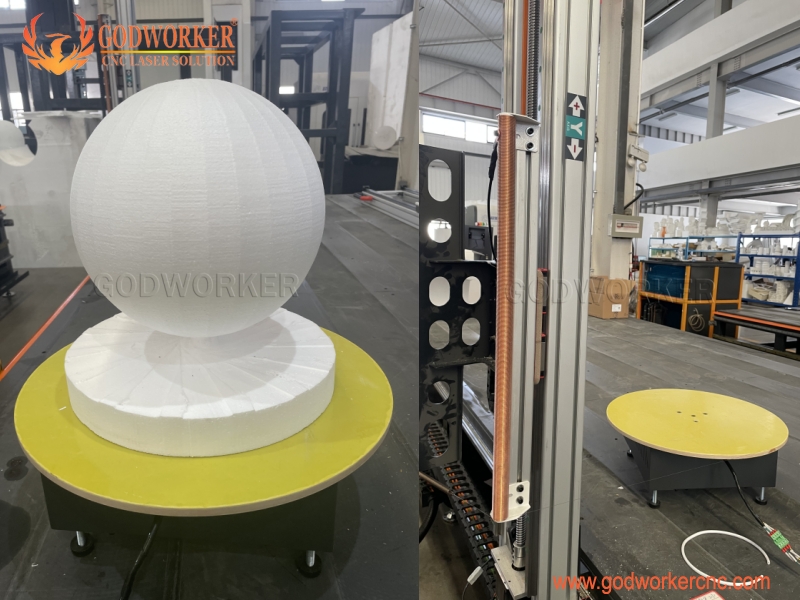

Featuring optional CNC/manual control, it supports 2D/3D cutting for straight cuts, complex contours and custom shapes. Stepless temperature adjustment adapts to different foam types, and its high-precision transmission system (Taiwan TBI ball screws for CNC) ensures ±0.2mm accuracy, meeting industrial demands.
Made of heavy-duty steel or aluminum, it is durable and stable for continuous industrial use. Equipped with safety protections (overcurrent protection, emergency stop) and custom voltage (110V/220V/380V), it is suitable for global markets.
 |
|
| Mach3 Control System | 4/5 Axis for optional |
 |
|
| High Precision ball screw and gear rack transmission | |
 |
|
| Rotary / Multi-wires for optional | |
| Model | GW-3020WF / GW-3018WF/ GW-3015WF |
| Working Area | 3000*2000*1300mm / 3000*1800*1300mm / 3000*1500*1300mm |
| Control System | MACH3 control system |
| Transmission | High precision 1.25m helical gear rack |
| Ball Screw | Taiwan TBI ball screw |
| Guide Rail | Linear 20 guide rails |
| Motor | Stepper motor and drivers |
| Working Table | 20mm thickness High-density polyester board |
| Control | Industry Computer (included) |
| Machine Structure | Heavy duty structure |
| voltage regulator power | 2KVA |
| Voltage | Single phase 220v, 50/60Hz |
-
Brand：Godworker
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes
