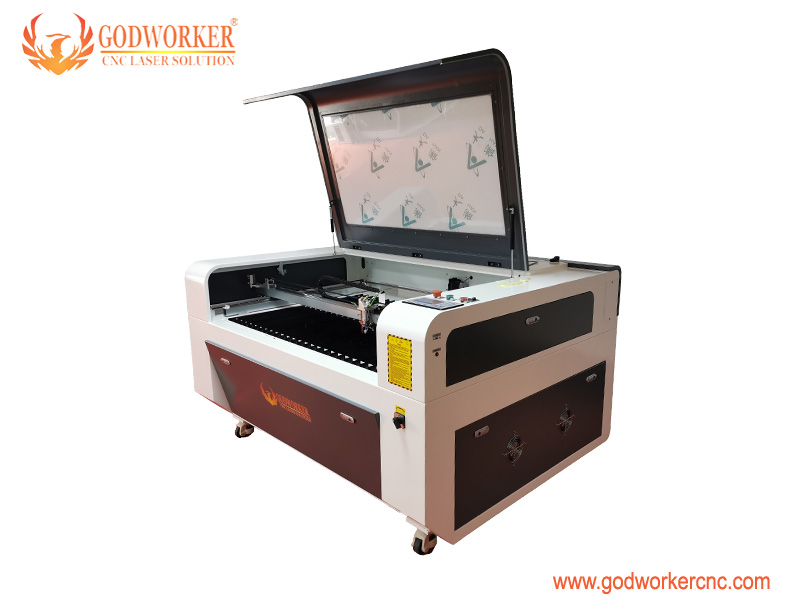

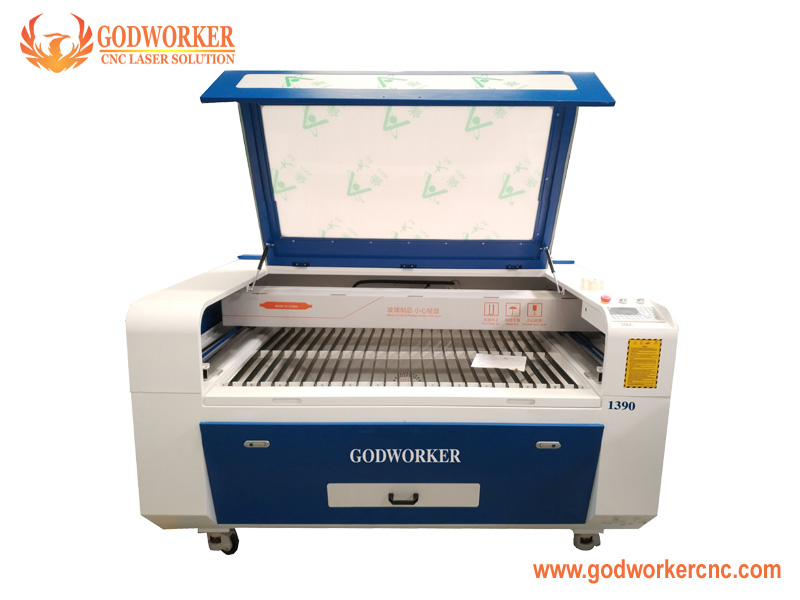

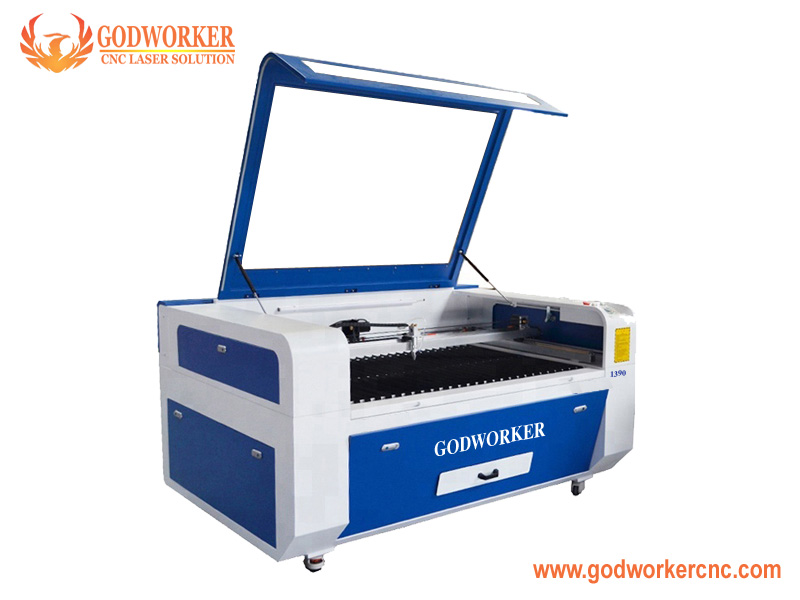

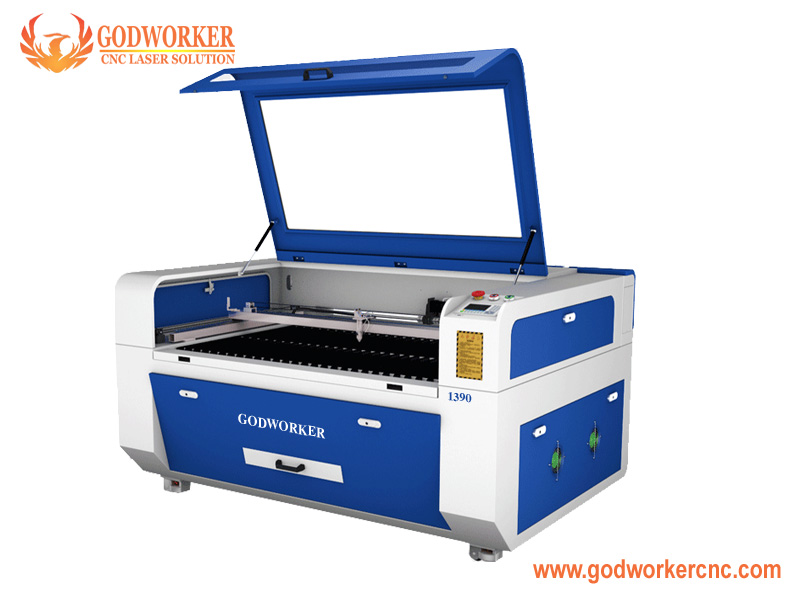

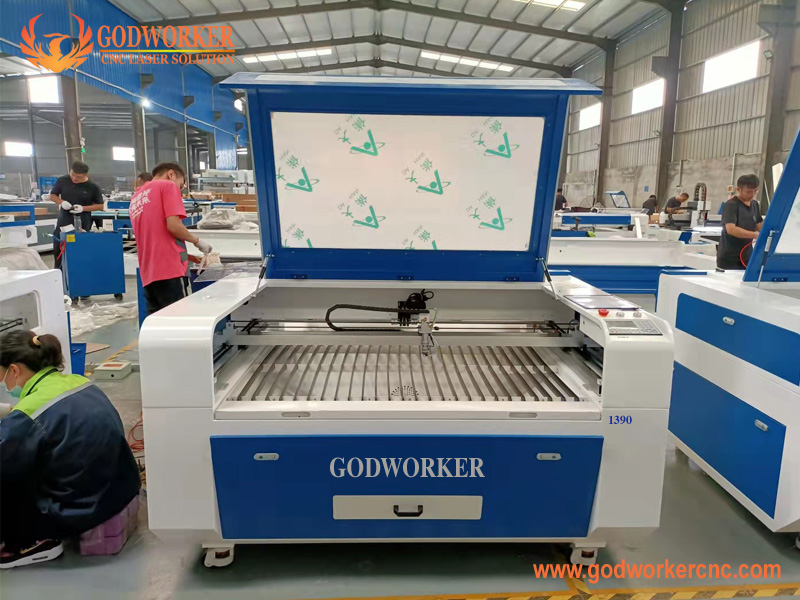

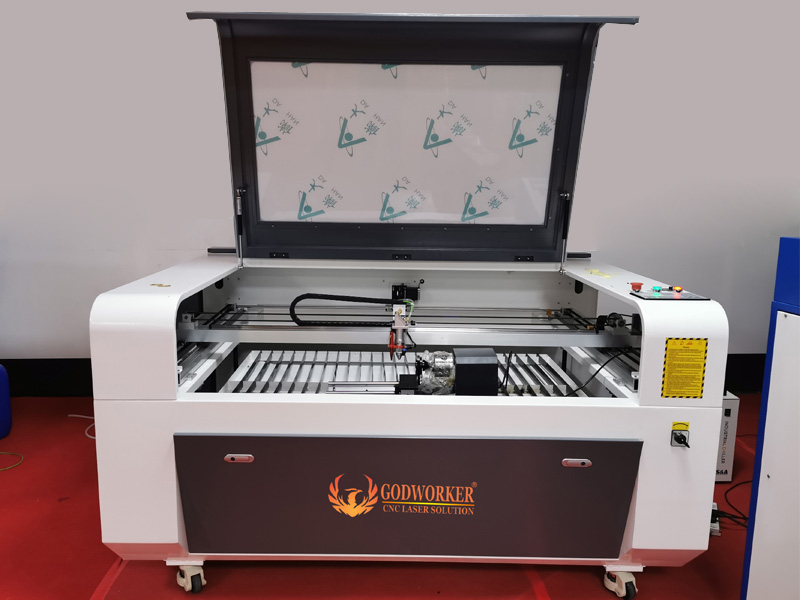

GW-1390 Laser Cutting Engraving Machine
Applicable Industry:
1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell
2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.
3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.
4.Model Industry: Production of construction sand table model and Aircraft Model, etc. ABC plate cutting, MLB cutting.
5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.
6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.
7.Product Identification Industry: Security marking products, etc.
Applicable Material:
Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.
Model |
GW-1390C |
||||
Engraving and Cutting Area |
1300*900mm |
||||
Tube type |

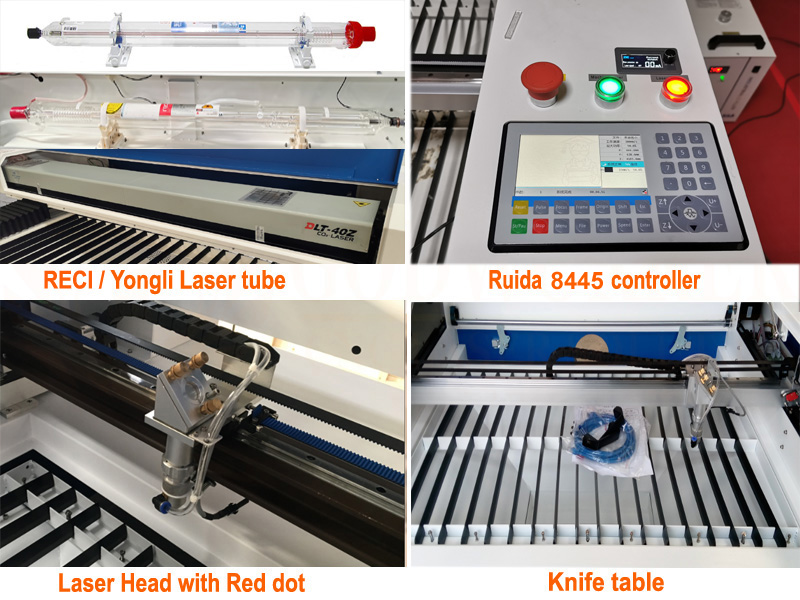

10.6um CO2 sealed glass tube |
||||
Laser Power |
80W |
130W |
150W |
180W |
300W |
Cooling (Pure water cycle) |
CW3000 |
CW5000 |
CW5200 |
CW6000 |
|
Engraving Speed |
0-60,000mm/min |
||||
Cutting Speed |
0-30,000mm/min |
||||
Reposition Accuracy |
±0.01mm |
||||
Minimum Character Size |
English:1mm ; Arabic numbers:1mm |
||||
Resolution |
1,000--10,000 dpi |
||||
File output mode |
2.0 USB interface |
||||
Machine Power |
<3,200W |
||||
Support Format and Software |
PLT,DST,DXF,DWG.CDR, AI, Auto CAD, Coreldraw, Photoshop, RD work V8 |
||||
Working Environment Temperature |
0-45°C |
||||
Drive system |
Stepper motors + YAKO drivers |
||||
Control system |
Ruida 6445G control system |
||||
Transmission way |
China Taiwan PMI Linear Rail + Japan ONK belt |
||||
Exhaust smoke system |
550W exhaust fan |
||||
Working Voltage |
220V,50HZ/60HZ |
||||
N.W. |
450KG |
||||
G.W. |
550KG |
||||
Warranty time |
2 years for machine, 10 months for tube |
||||
Package |
Plywood case with steel tube |
||||
Packing size |
1970*1850*1250mm |
||||
Delivery time |
3--5 working days after received the deposit |
-
Brand:Godworker
-
Model:GW-1390C;GW-1390D
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes

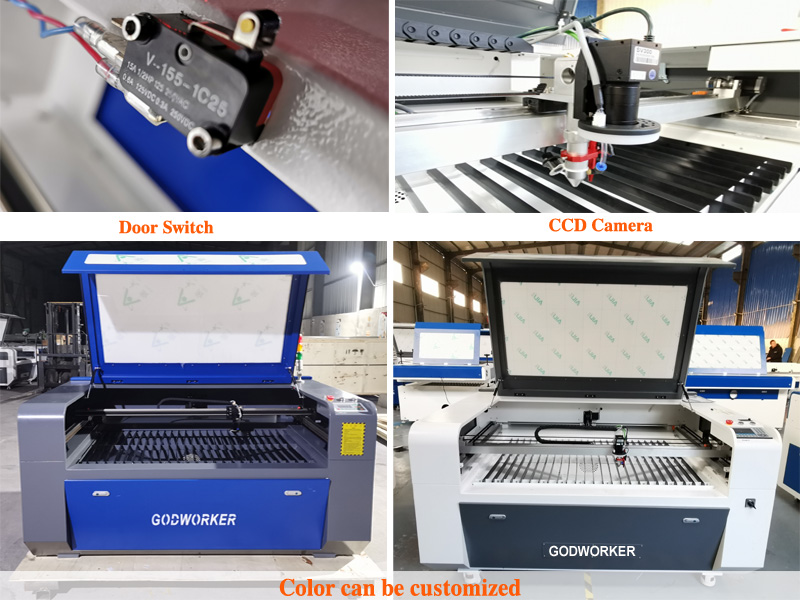

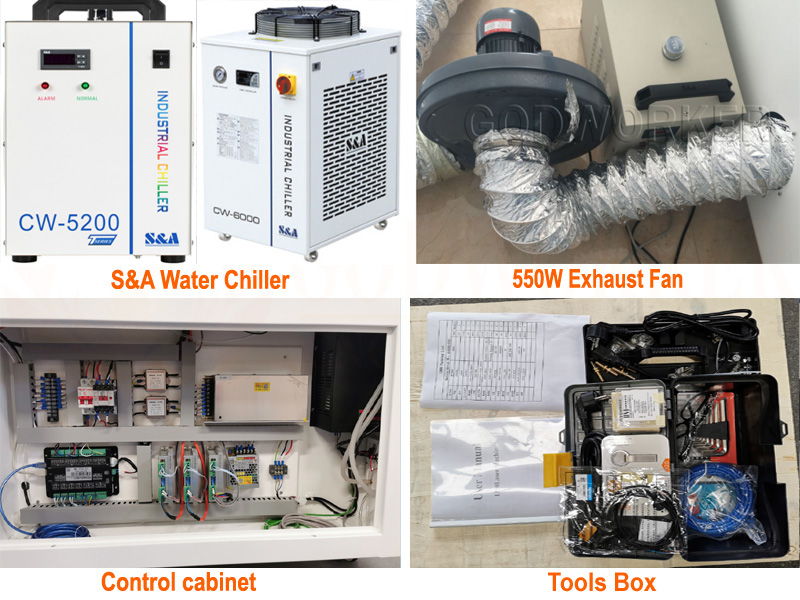

Machine equip orginal top brand parts, like PMI Linear Rail, Ruida 6445G controller, Omron Limit sensor, S&A water chiller, Schneider eletric parts, etc.
