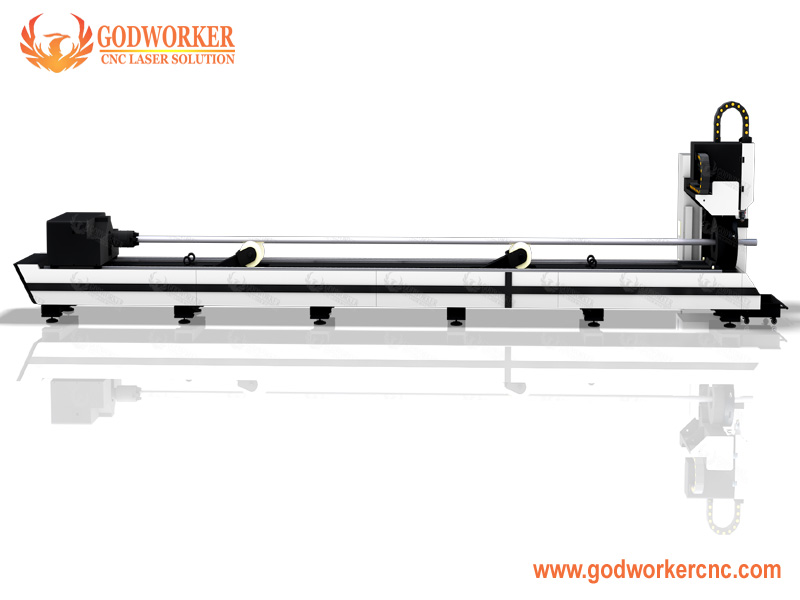

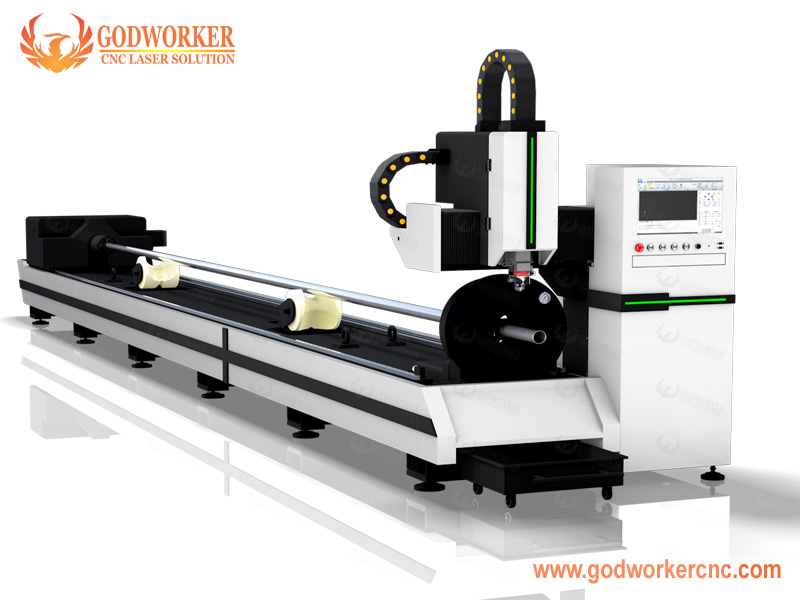

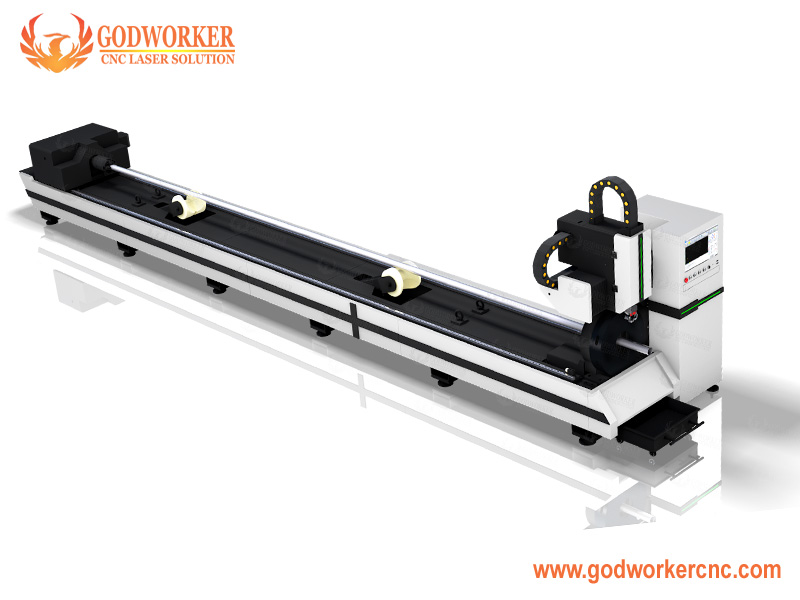

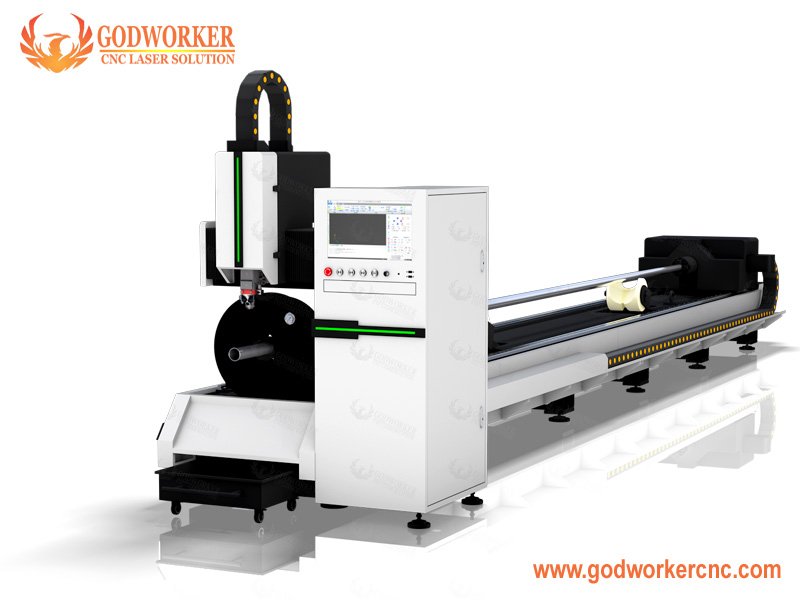

6m steel tube pipe fiber laser cutting machine
Metal tube fiber laser cutting machine,which is special used for cutting round tube,square tube and other metal tube.Pipe processing range 6500mm* φ20~220mm. Metal tube laser cutting machine is equipped with fiber laser from 1kw to 4kw.
|
Model |
GW-60R |
|
Laser power |
2000Watt |
|
Dimension |
9.26*2.01*2.52M |
|
Y-axis stroke |
330mm |
|
X-axis stroke |
6500mm |
|
Z-axis stroke |
350mm |
|
X/Y axis position accuracy |
±0.05 |
|
X/Y axis reposition accuracy |
±0.03 |
|
Max. cutting speed |
40m/min |
|
Maximum acceleration |
1.0G |
|
Max. working capacity of sheet table |
30kg |
|
Transmission |
Double driver high precision rack and gear |
|
X-axis guide width |
20mm |
|
Y-axis guide width |
35mm |
|
Screw |
TBI |
|
Total power consumption |
16KW |
|
Specified voltage and frequency |
380V,50Hz/60Hz |
-
Brand：Godworker
-
Model:GW-60R
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes
Machine bed adopts a stacked-welded integrated bed with stable performance and high processing accuracy. The machine is equipped with a full-stroke pneumatic chuck which is mainly used for cutting and blanking of metal pipes, and is suitable for cutting kinds of metal pipes of 20~220m.
