HOME    CO2 Laser Cutting Machine    GW-1610 Dual Heads LaserCutting Engraving Machine

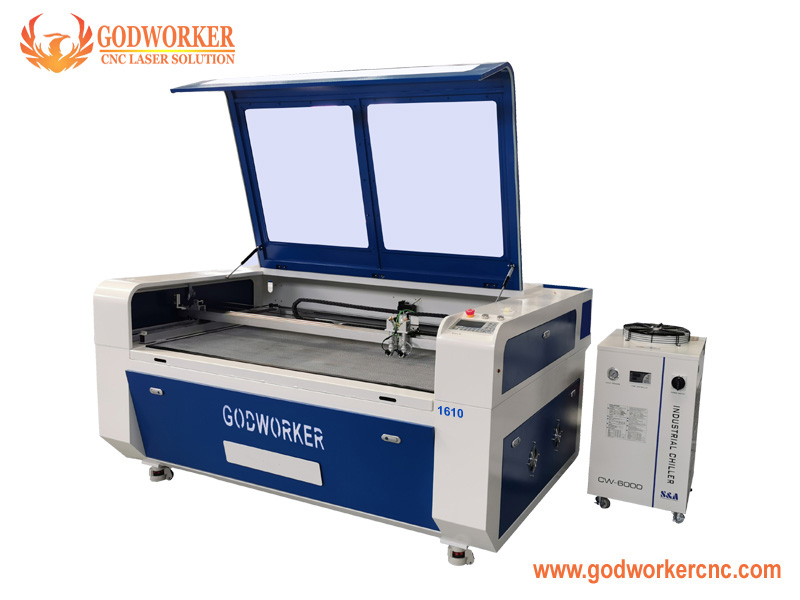

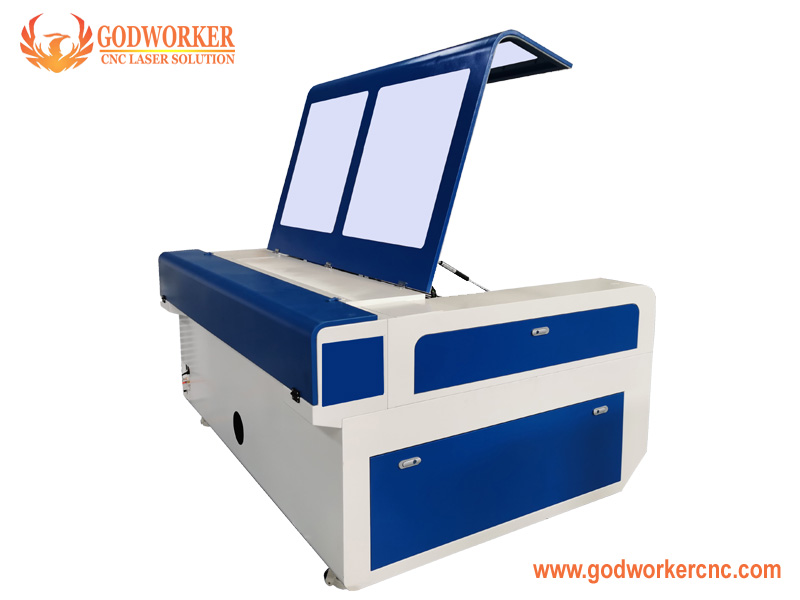

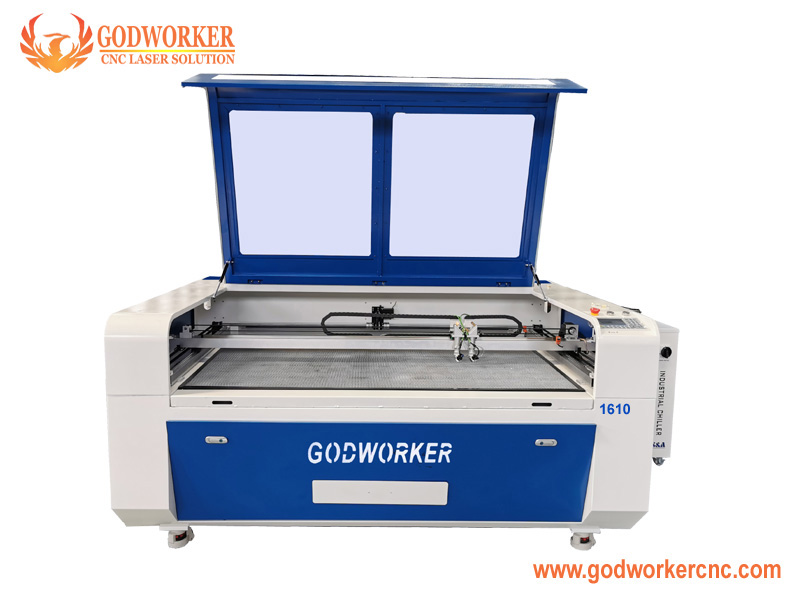

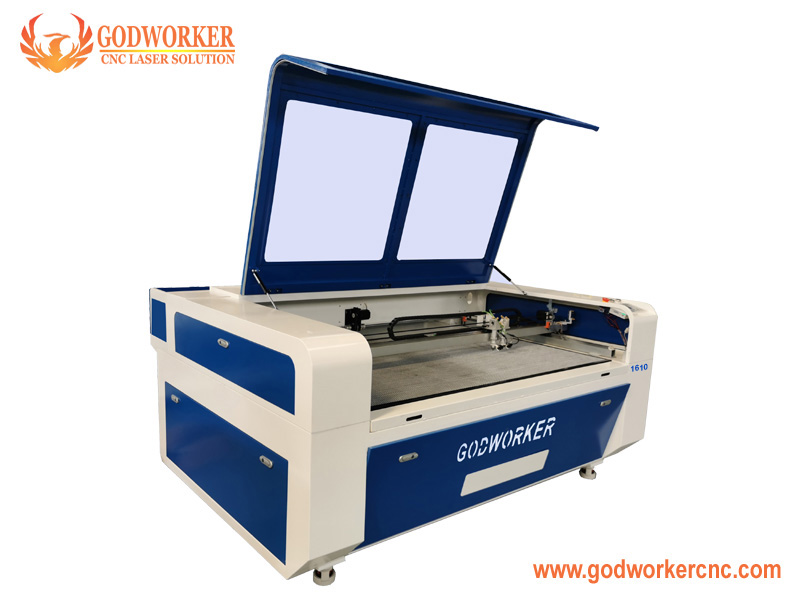

GW-1610 Dual Heads LaserCutting Engraving Machine


GW-1610 Dual Heads Laser Cutting Engraving Machine


Features:

1. Transmission: Adopt Stepper motor motor with PMI Linear Rail transmission greatly improve the response speed & cutting precision of equipment, extend the time of using.

2. Constant light system :The machine uses the constant light,achieving high precision cutting of the whole area.

3. High precision and stability: with precision Japan ONK belt & China Taiwan PMI Linear Rail transmission mechanism and optimized the Ruida RDC 6445G system controller, it can meet the precision parts processing ,also can work for long hours.

4. Adopt Yongli sealed CO2 laser tube, main consumable items are electric energy, water-cooling,auxiliary gas and laser light.

Applicable Industry:

1.Engraving beautiful patterns and words such as wood, bamboo, Ivory, bone, leather, marble, shell.

2.Mainly used in large plastic character cutting, color plate engraving, organic glass engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving, etc.

3.Leather Clothing Processing Industry: Can engraving and cutting complex patterns on genuine leather, synthetic leather, leather, woolens, clothing, furnishings, glove, handbag, shoes, hats, toys, etc.

4.Model Industry: Production of construction sand table model & Aircraft Model, ABC plate cutting, MLB cutting.

5.Packing Industry: Engraving and printing rubber plate, plastic plate, double board, die cut plate, etc.

6.Other Industry: Engrave on marble, granite, glass, crystal and other decorative materials, cut paper, card.

7.Product Identification Industry: Security marking products, etc.

Technical Parameters


Model

GW-1610D dual heads laser cutting machine

Engraving and Cutting Area

1600*1000mm

Tube type

Yongli / RECI 10.6um CO2 sealed glass tube

Laser Power

80W / 100W / 130W / 150W / 180W / 220W / 300W

Cooling

Pure water cycle (water chiller CW3000---CW6000)

Engraving Speed

0-60,000mm/min

Cutting Speed

0-30,000mm/min

Reposition Accuracy

±0.01mm

Minimum Character Size

English:1mm ; Arabic numbers:1mm

Resolution

1,000--10,000 dpi

File output mode

2.0 USB interface

Machine Power

<3,700W

Support Format and Software

PLT,DST,DXF,DWG.CDR, AI;

Auto CAD, Coreldraw, Photoshop, RD work V8

Working Environment Temperature

0-45°C

Drive system

KD Stepper motors + YAKO drivers

Control system

Ruida 6445G control system

Transmission way

China Taiwan PMI Linear Rail + Japan ONK belt

Exhaust smoke system

550W exhaust fan

Working Voltage

Single Phase 110V / 220V, 50 / 60Hz

N.W. / G.W.

550KG / 650KG

Warranty time

2 years for machine, 10 months for tube

Package

Plywood case with steel tube

Packing size

2350*1950*1250mm

Delivery time

3--5 working days after received the deposit

Samples of 1610 Dual Heads Laser Cutting Engraving Machine


Applicable Material:

Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf , Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.



Machine Details of 1610 Dual Heads LaserCutting Engraving Machine


Yongli / RECI CO2 laser tube and digital laser power supply:

Laser head with red dot:

S&A water chiller for laser tube cooling:

Transmission system: PMI Linear Rail + Japan ONK belt + Stepper motor + Omron limit sensor.

Ruida 6445G control panel:

Europe Standard Power plug:

Tool box: Software CD + Tools + Ruler + Glasses + User Manual + keys + spare parts.

Package:

FAQ


Q: Are you a factory or a trading company?
A: We are factory manufacturing packaging machines and we provide perfect OEM and after-sale service.

Q: How can I know your machine is match for my work?
A: You can send us samples of your product and we test it on machine.

Q: How can I get the sample to check the quality?
A: If you want to check the quality, pls kindly send us the sample for testing.

Q: How long can I expect to get the sample?
A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.

Q: How can I pay my order?
A: We accept T/T, Western Union ,Money Gram paying methods.

Q. When I got GODWORKER Laser cutting machine, I don't know how to use it. What should I do?
A: 1. We will send you the video and manual with the laser machine.
2. If you still have some doubts, please contact us via Telephone / WeChat / Email / WhatsApp, will answer you within 8 hours.
3. Engineer can remote control your PC guide you how to operate it.
4. If necessary, we will dispatch the technician for in-house service (Installation & Training), but you need pay for some fee, like air tickets, hotel and meal, daily salary.
5. If you can come to China, we will offer you free training until you can use machine freely.

Q: What's the warranty on the laser cutting machine?
A: 1. Machine has warranty for 2 years, starting from the delivery date (subject to date on nameplate).
2. Glass laser tube warranty for 6--18 months.
3. No warranty in case of damage due to improper handling.



Any further questions, please do not hesitate to contact us, we will service to you at 7×24 hours.

Leave your message

Message

Name *

Email *

Phone *

Country *

Your Message *

  • Brand:
    Godworker
  • Model:
    GW-1610D
  • MOQ:
    1 set
  • Payment Terms:
    T/T 30% deposit advance, 70% payment before shipment
  • OEM
    Yes

Product Name:

Contact Now
Double heads make working more effectively, save time.
Machine equip orginal top brand parts, like RECI / Yongli Laser Tube, PMI Linear Rail, Ruida 6445G controller, Omron Limit sensor, S&A water chiller, Schneider eletric parts, etc.
