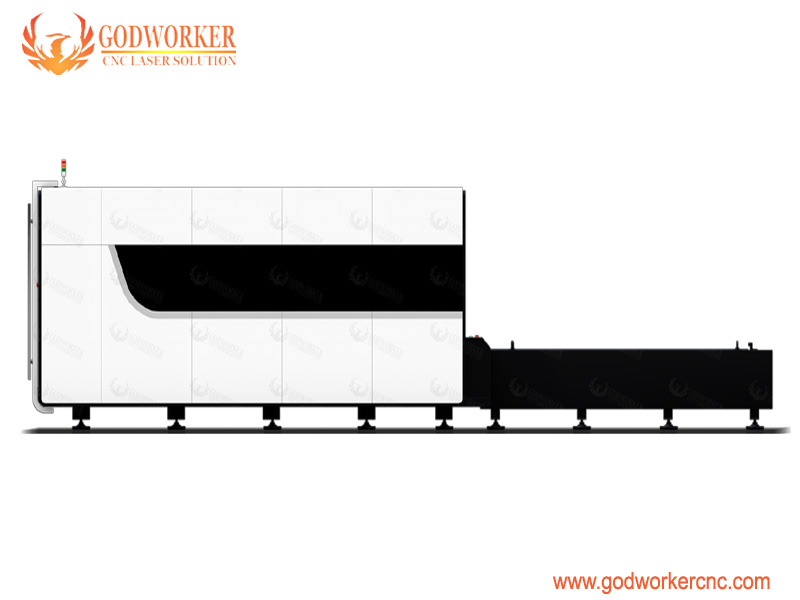

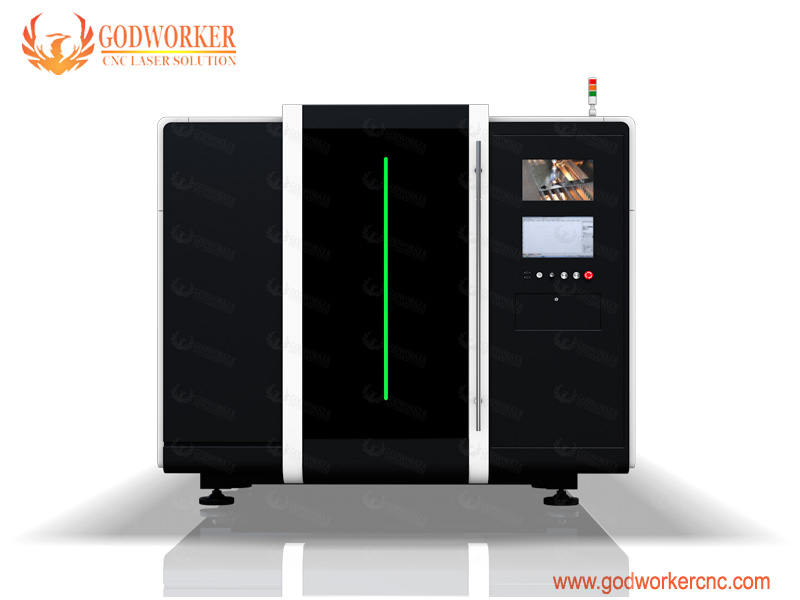

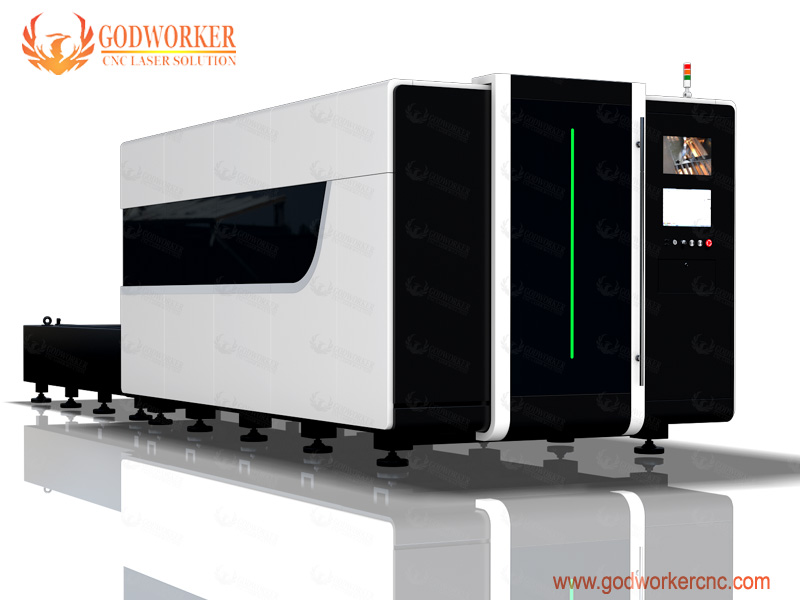

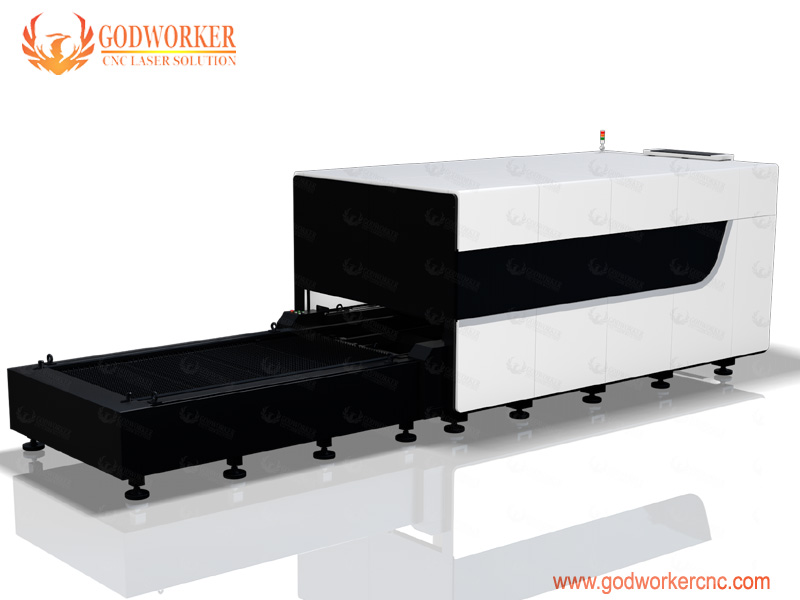

Fully Enclosed Fiber Laser Cutting Machine with Auto Exchange Table
Feature:
1. High speed, high precision, high efficiency and low cost.
2. Easy on operation, fiber optical path, without tediously adjustment on optical path.
3. Compact structure, good sealing, strongly adaptable to changes in the environment.
4. With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%.
Application Material:
Focus on cutting carbon steel which thickness is less than20mm, stain- less steel, galvanized sheet, electrolytic plate, silicon steel and other metal materials which thickness are less than 10mm.
Industries:
Kitchen cabinets, Door processing , Lighting hardware , Chassis cabinets Advertising signs , Elevator manufacturing , Sheet metal processing , Home appliances .
|
Model |
GW-3015FA |
|
Working Size |
3000x1500mm |
|
Laser Type |
IPG / RAYCUS / JPT Fiber Laser Generator |
|
Laser Wavelength |
1080nm |
|
Laser Output Power |
1000W --120000W |
|
Cutting Thickness |
< 60mm |
|
Laser Head |
Raytools / BOCI cutting head |
|
Max Cutting Speed |
0-700mm/s |
|
Position Accuracy |
<±0.01mm |
|
Minimum Line width |
<0.12mm |
|
Working mode |
Continues |
|
ACC speed |
0-4000mm/s^2 |
|
Working speed |
0-350mm/s |
|
Working ACC |
0-2000mm/s^2 |
|
Cooling System |
TF / S&A Industry chiller |
|
Driving System |
Japan Yaskawa Servo motor and drivers |
|
Transmission |
Japan SMAG Linear Rail + gear rack |
|
Reducer |
France MOTOREDUCER reducer |
|
Electric parts |
France Schneider |
|
Acceleration |
1.5G |
|
Working table max loading |
>800kgs |
|
Working table |
Automatic exchange table |
|
Power Adjustment |
0-100% controlling, (0-100% adjusting by software) |
|
Aiming Position |
Red-light position |
|
Blowing System |
Cabinet exhaust fan |
|
Minimum Character |
Chinese character 2.0mm, crisscross-row 1mm |
|
Working Environment |
Temperature: 0-45°C, Humidity: 5%-95% |
|
Noise |
<65Db(not include exhaust fan noise) |
|
Lubrication system |
Auto |
|
Software |
CYPCUT |
|
Graphic support |
AI, BMP, PLT, DXF, DST, etc |
|
Protection level |
IP54 |
|
Working Voltage |
380V; 50Hz/60Hz |
|
Machine whole power |
25KW |
|
Machine weight |
8.5 Tons |
|
Size L*W*H(mm) |
8150*2825*2125mm |
CYPCUT Control System: Easy operate, also has auto edge seeking function and flying cutting function, Intelligent typesetting etc functions.
Fiber Laser Source: Raycus / JPT / IPG for option, base on materials and thickness can choose match watts fiber laser source, like: 1000W, 2000W, 3000W, 4000W, 6000W, 12000W etc.
Raytools cutting head:
Quench Hot and High Precision Process Machine Body
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
SMAG Linear rail & Gear rack
High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque.
France Motoreducer
Effectively decrease the speed of beam, make cutting and machine more stable to keep machine life long work.
Japan YASKAWA
Higher power of motor and drive makes higher moving speed for laser head.
Water Cooling System
Hot water for laser head and cool water for laser source to keep them around a certain temperature and guarantee their normally work.
Blade Table with pneumatic ejector beam
High precision CNC fixed working table;
Special designed small pneumatic wheel carriers ,the metal sheet to be cut may slide along the machine body for easy loading;
Strip working table; Steel material,put cutting sheet on it.
Service Fiber Laser Cutting Machine:
1. Warranty 3 years warranty for machine, 2 years for laser source. Our customer will be fully trained for the operation and maintaining technology after the order confirmed. 12-hour after sales service: our skilled engineer will help customer to solve the problem by Wechat or Whatsapp or Online remote assistance in time when problems happen. If necessary, our engineer can go oversea door to door services.
2. Quality Control Skilled and strict quality inspection team is available during the material purchasing and production procedure. All finished fiber laser cutting machine, we delivered are 100% strictly tested by our QC department and engineering department before shipping.
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors, etc. MOQ required 3 sets.
4. Privacy all of your personally identifiable information (such as your name, address , email address, bank info, etc ) wont be disclosed or shared with any third parties.
5. All of your inquiries, questions or problems will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.
6. Payment Terms30% T/T paid in advance, the balance paid before shipment. Accept Credit card, Alibaba Trade Assurance.
7. International Shipping: by sea, by air or by international express logistics ( DHL, FEDEX, UPS, TNT).
8. Get a free quotation by filling up the form with your name, email, detailed address, product and requirements, we will contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
Q: What's the materials fiber lase cutting machine can cut?
A: All kinds of metal, such as Stainless Steel, Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, alloys, etc. With rotary machine can cut metal pipe and tube. This type machine is designed specially for those customers who need one machine to cut both metal sheet and metal pipe.
Q: How long is life time of fiber laser cutting machine?
A: Averange life time of fiber laser source is 10 years, warranty 3 years. Average life time of cutting head is 8 years, maximum is 10 years.
Q: What's the max cutting thickness of fiber laser cutting machine?
A: Cutting thickness depend on laser power and metal materials.
1000W: 4mm stainless steel, 12mm carbon steel, 3mm aluminum, brass;
1500W: 6mm stainless steel, 16mm carbon steel, 6mm aluminum, 5mm brass;
2000W: 8mm stainless steel, 20mm carbon steel, 8mm aluminum, 6mm brass;
3000W: 10mm stainless steel, 22mm carbon steel, 10mm aluminum, 8mm brass;
6000W: 16mm stainless steel, 30mm carbon steel, 16mm aluminum, 10mm brass;
Etc........
Q: Can we use air to cut metal?
A: Yes customers usually use compressed air to cut stainless steel under 3mm thickness. We could install 11kw 1.3mpa air compressor together with machine.
Q: Can you arrange shipment?
A: Yes we have stable forwarders, which could deliver machine to destinations overseas by sea/ land/ air. Also you could use your own forwarder to ship machine.
Q：How to place a order ？
A: After you confirmed order details and decided to purchase our machine, we would make and send you Proforma Invoice.
Pay 30--50% deposite in advance. Then we arrange production of machine. Sometimes there are machines in stock. After finished tested the machine, will take cutting sample videos for you confirm.
When you confirmed machine has excellent performance. We would inform you to make balance payment.
Will cleaning and packing machine, shipping to loading port.
Q：Can you guide us to install and operate machine ？
A: Yes, when you received the machine, in tools box has user manual and video guide you how to install and assemble, operate and maintain. At the same time our engineer will online services for helping.
-
Brand：Godworker
-
Model:GW-3015FA；GW-4015FA；GW-6015FA；GW-4020FA；GW-6020FA
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes
