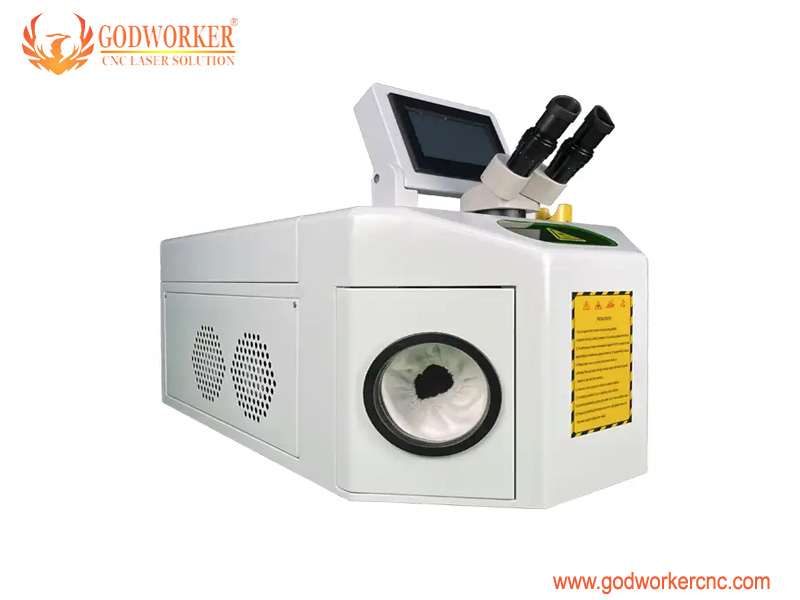

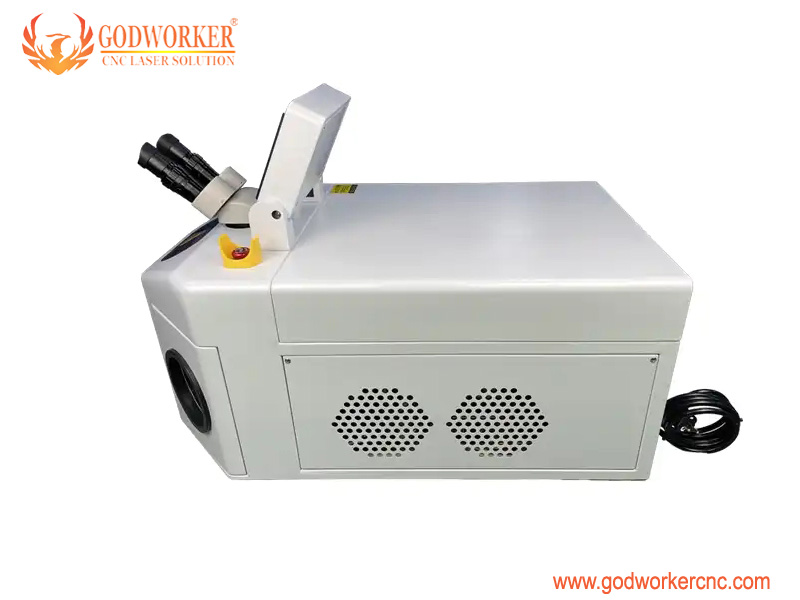

200W Desktop Jewelry Repairing Lazer Spot Welder Mini Laser Welding Machine

200W Desktop Jewelry Repairing Lazer Spot Welder Mini Laser Welding Machine


* The welded material is not easily oxidized and can be welded in the atmosphere without the need for gas protection or vacuum environment.
* Laser can directly weld insulation materials, making it easier to weld dissimilar metal materials, and can even weld metals and non-metals together.
*The laser welding device does not need to contact the workpiece to be welded. The laser beam can be bent or focused in any direction by a reflector or deflection prism, and can also be led to inaccessible parts by Optical fiber for welding.
*The laser beam will not cause any wear and can work stably for a long time.
*High precision: The laser beam can accurately control the shape and size of the weld seam.
*Small deformation: because the heating time in the laser welding process is very short, there will be less distortion.
*Good weld quality: due to the narrow weld width generated during laser welding, the weld quality is very high and is not easily affected by the external environment.

Technical Parameter:
Model   GW-200JW

Input power


Output power


Welding depth 0.1-3.0mm
Max single pulse energy


Laser wavelength


Laser spot diameter


Power range


Pulse width




Work focus distance



AC110 ~ 220V;  50/60HZ

Power plug




Observation system

Microscope or HD CCD

Cooling   Water cooling
Working temperature 55F(13C)-82F(28c)
Working Humidity 5%-75%

Size & Weight

600*400*500mm /  40KG

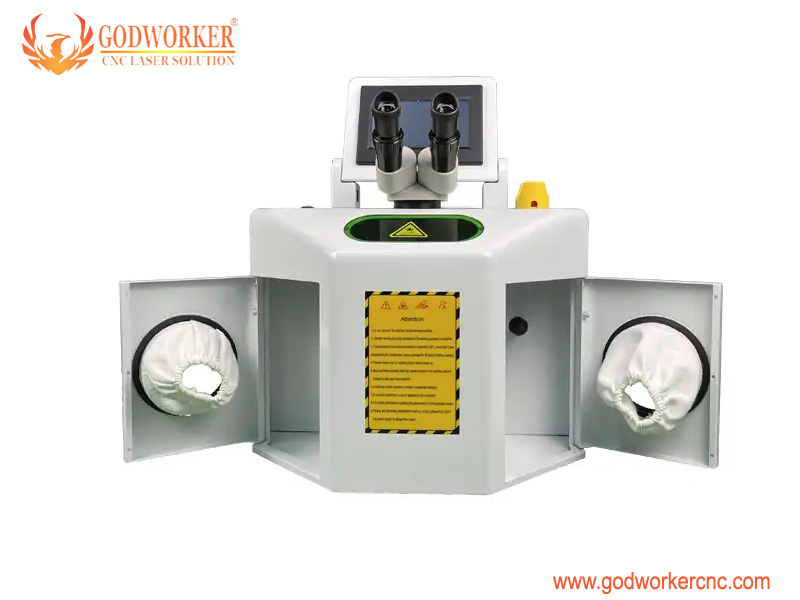

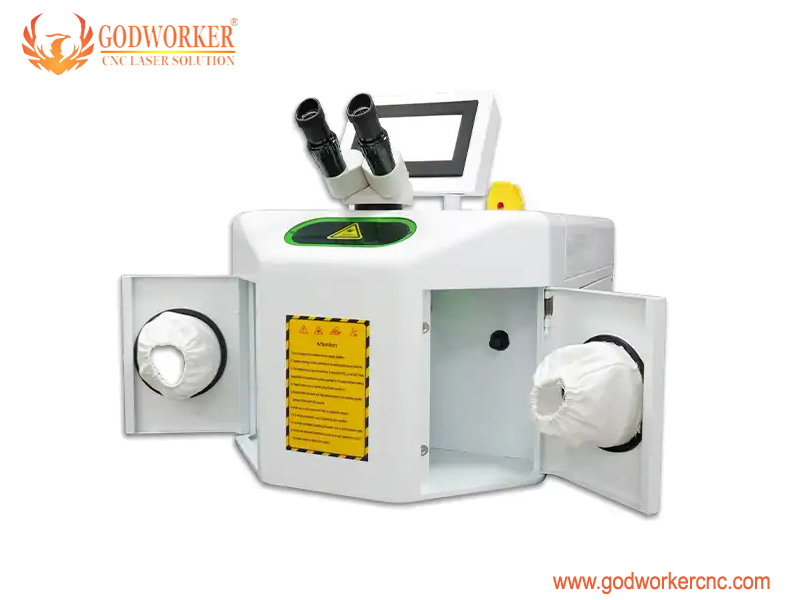

Machine Details

HD Microscopes: Microscope can enlarge the welding objects and ensure good vision of tiny parts. The welding clarity can be adjusted.

Params Panel: LCD touch screen controller with built-in software the adjustment of params is easy. You can keep different params for different materials and can search directly when need.

Cooling System: With internal water cooling and air cooling circulation to make the machine work in good condition.

LED Light: It will help the user see the work pieces welding process more clearly. And can manual adjust its luminance.

Gas Blow Pipe: Blow in protect gas such as N2. Ar. He. can protect the lens from sputtering of metal droplets ad protect the weld from oxidation during welding.


Leave your message


Name *

Email *

Phone *

Country *

Your Message *

  • Brand:
  • Model.
  • MOQ:
    1 set
  • Payment Terms:
    T/T 30% deposit advance, 70% payment before shipment
  • OEM

Product Name:

Contact Now
Special purpose for jewelry industry, Compact size.
Used in jewelry, diamond ring pendants, Accessories  necklaces, etc.
Stable performance and mature industry, High cost performance.
Less maintenance and cheap consumables.
