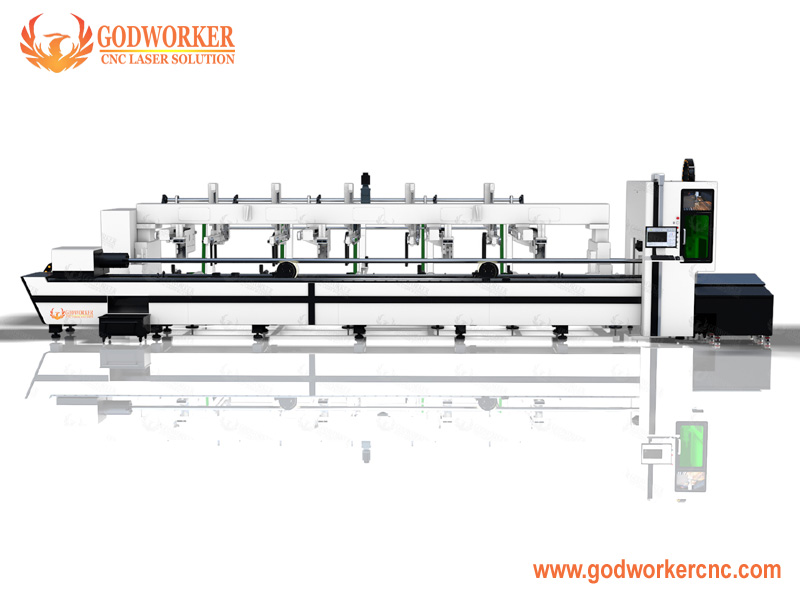

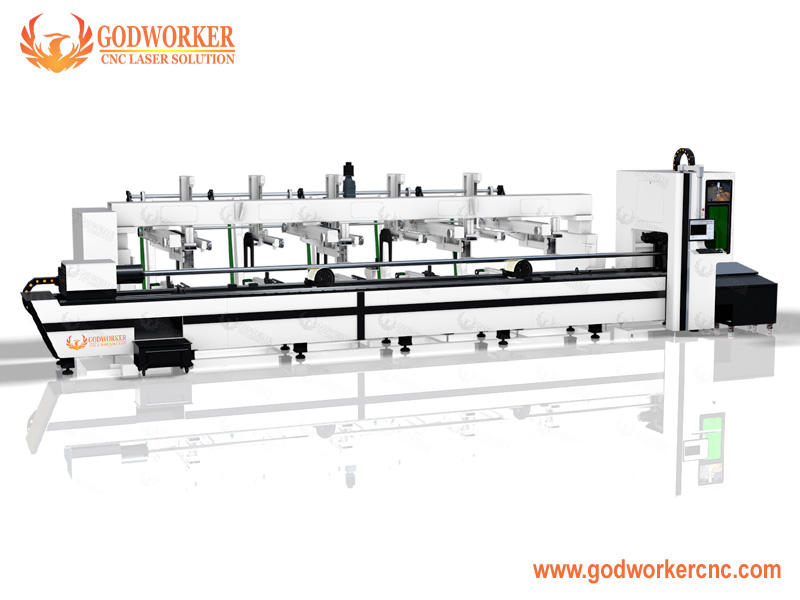

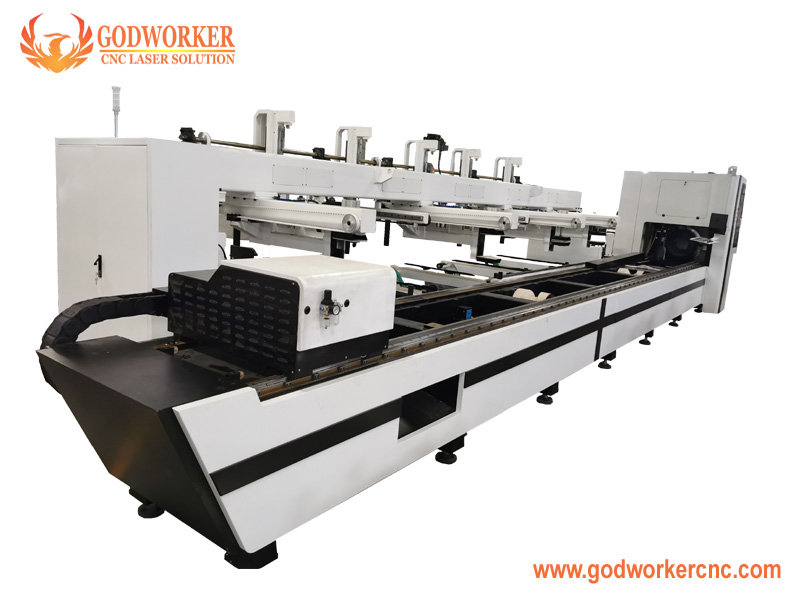

Auto loading steel tube fiber laser cutting machine
Auto loading metal tube fiber laser cutting machine is able to cut round tube, square tube, rectangular tube, U-steel tube. Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
Automatic Feeding:
Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
Automatic Unloading:
The finished product is automatically dropped to the storage bin, double support-bearing auxiliary support overlong tubes.
Application Industries:
Auto loading metal tube laser cutting machine is widely used in manufacturing billboard, signs, kitchen ware, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets processing, metal Crafts, elevator panel cutting, hardware, auto parts, electronic parts etc.
|
Model |
GW-60RA |
|
Laser power |
1000W / 1500W / 2000W / 3000W / 4000W / 6000W ..... |
|
Dimension |
9.26*2.01*2.52M |
|
Y-axis stroke |
330mm |
|
X-axis stroke |
6500mm |
|
Z-axis stroke |
350mm |
|
X/Y axis position accuracy |
±0.05 |
|
X/Y axis reposition accuracy |
±0.03 |
|
Max. cutting speed |
45m/min |
|
Maximum acceleration |
1.0G |
|
Max. working capacity of tube |
20--220mm |
|
Transmission |
Double driver high precision rack and gear |
|
X-axis guide width |
20mm |
|
Y-axis guide width |
35mm |
|
Screw |
TBI |
|
Total power consumption with 3000W source |
28KW |
|
Specified voltage and frequency |
380V/50HZ/Three Phase/60A(Option) |
Auto loading metal tube laser cutting machine is suitable for metal cutting with stainless steel sheet, carbon steel sheet, mild steel plate, alloy steel plate, spring steel sheet, iron Plate, galvanized sheet, aluminum, copper, brass, bronze plate and other metal sheet.
Fiber laser source: JPT 4000W (Option 1000W / 1500W / 2000W / 3000W / 6000W...., Raycus or IPG brand).

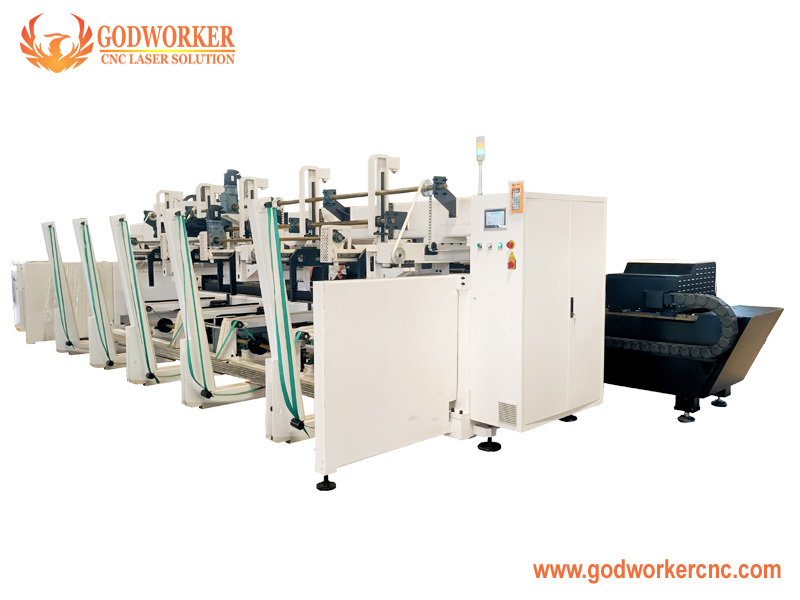

Auto loading system:
Clamping Chuck:
Packing:
-
Brand：Godworker
-
Model:GW-60RA
-
MOQ:1 set
-
Payment Terms:T/T 30% deposit advance, 70% payment before shipment
-
OEMYes
Realize the intelligent material separation, feeding and seamless docking with the fiber laser cutting machine after the whole bundles of tubes are placed in the feeding device, and ensure that only one tube is delivered to the conveying arm each time.
